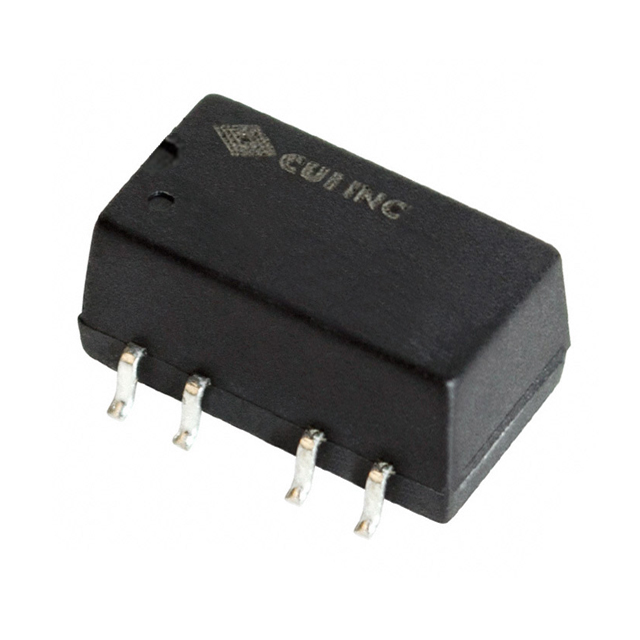

PDS1-S5-D24-M _ DC DC Converters_Power Supplies

Part Number	PDS1-S5-D24-M
Manufacturer	CUI Inc
Other Part Numbers	102-4555-ND 102-4555 PDS1-S5-D24-M-ND
Description	DC DC CONVERTER +/-24V 1W
Detailed Description	Isolated Module DC DC Converter 2 Output 24V -24V 21mA, 21mA 4.5V - 5.5V Input
Datasheet	Datasheet

Category		Power Supplies - Board Mount DC DC Converters
Manufacturer		CUI Inc
Series		PDS1-M (1W)
Packaging		Tube
Part Status		Last Time Buy
Features		SCP
Package / Case		10-SMD Module, 6 Leads
Size / Dimension		0.60" L x 0.33" W x 0.29" H (15.2mm x 8.3mm x 7.3mm)
Mounting Type		Surface Mount
Type		Isolated Module
Operating Temperature		-40°C ~ 105°C (With Derating)
Applications		ITE (Commercial)
Voltage - Input (Max)		5.5V
Approval Agency		CB Scheme, EN, IEC
Efficiency		81%
Current - Output (Max)		21mA, 21mA
Voltage - Input (Min)		4.5V
Voltage - Output 1		24V
Voltage - Output 2		-24V
Power (Watts)		1 W
Number of Outputs		2
Voltage - Isolation		1.5 kV
Standard Number		55024; 55032 Class A; 60950-1

RESOURCE TYPE		LINK
Datasheets		PDS1-S5-D24-M
Datasheets		Product Discontinuation 16/JAN/2024

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.40.9580
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS Compliant
