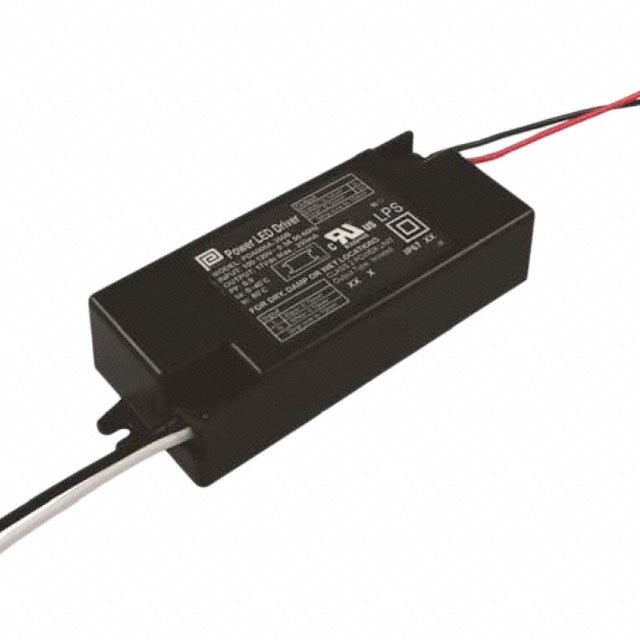

Part Number |
PDA006A-700B
|
---|---|
Manufacturer | PHIHONG USA |
Other Part Numbers |
993-1267-ND
993-1267
PDA006A-700B-R
|
Description | LED DRIVER CC AC/DC 5-8.6V 700MA |
Detailed Description | 700mA 5 ~ 8.6V Constant Current LED Driver AC DC Converter Topology 1 Output |
Category | ||
---|---|---|
Manufacturer | PHIHONG USA | |
Series |
PDA (6W)
|
|
Packaging |
Box
|
|
Part Status | Obsolete | |
Features | OCP, OVP, SCP | |
Size / Dimension | 4.17" L x 1.57" W x 0.83" H (106.0mm x 40.0mm x 21.0mm) | |
Voltage - Output | 5 ~ 8.6V | |
Type | Constant Current | |
Operating Temperature | 0°C ~ 40°C | |
Termination Style | Wire Leads | |
Voltage - Input (Max) | 132VAC | |
Approval Agency | cULus | |
Ratings | IP67 | |
Efficiency | 73% | |
Topology | AC DC Converter | |
Current - Output (Max) | 700mA | |
Voltage - Input (Min) | 90VAC | |
Power (Watts) | 6 W | |
Number of Outputs | 1 | |
Voltage - Isolation | 3 kV | |
DigiKey Programmable | Not Verified |
RESOURCE TYPE | LINK |
---|
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8504.40.9580 | |
Moisture Sensitivity Level (MSL) | Not Applicable |
