PD2635L5050S2HF2

PD2635L5050S2HF2

Part Number	PD2635L5050S2HF2
Manufacturer	TTM Technologies / Anaren Wireless
Other Part Numbers	1173-PD2635L5050S2HF2TR-ND 1173-PD2635L5050S2HF2CT-ND 1173-PD2635L5050S2HF2DKR-ND 1173-PD2635L5050S2HF2TR 1173-PD2635L5050S2HF2CT 1173-PD2635L5050S2HF2DKR
Description	RF POWER DIVIDER 0805
Detailed Description	RF Power Divider 2.496 GHz ~ 4 GHz Isolation (Min) 16dB, 17dB Return Loss, 4° Imbalance (Max) 0603 (1608 Metric), 6 PC Pad
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Product Attributes

Category		RF and Wireless RF Power Dividers/Splitters
Manufacturer		TTM Technologies / Anaren Wireless
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active

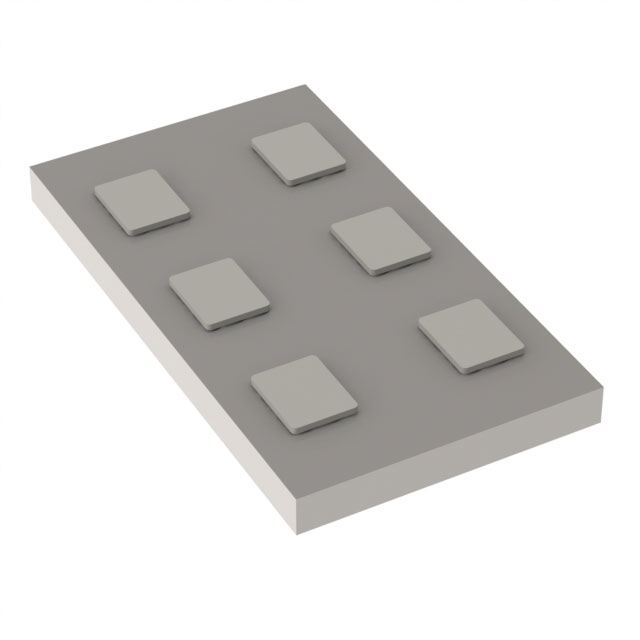

Package / Case		0603 (1608 Metric), 6 PC Pad
Size / Dimension		0.063" L x 0.033" W x 0.028" H (1.59mm x 0.84mm x 0.70mm)
Insertion Loss		0.4dB
Specifications		Isolation (Min) 16dB, 17dB Return Loss, 4° Imbalance (Max)
Frequency		2.496 GHz ~ 4 GHz

Documents & Media

RESOURCE TYPE		LINK
Datasheets		PD2635L5050S2HF2

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8548.00.0000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected

In Stock: 1722

Can ship immediately.
