PD-520R2-4121

PD-520R2-4121

Part Number	PD-520R2-4121
Manufacturer	Power Dynamics, Inc.
Other Part Numbers	2668-PD-520R2-4121-ND 2668-PD-520R2-4121
Description	4 GANG NEMA, 15/20A, SNAP-IN

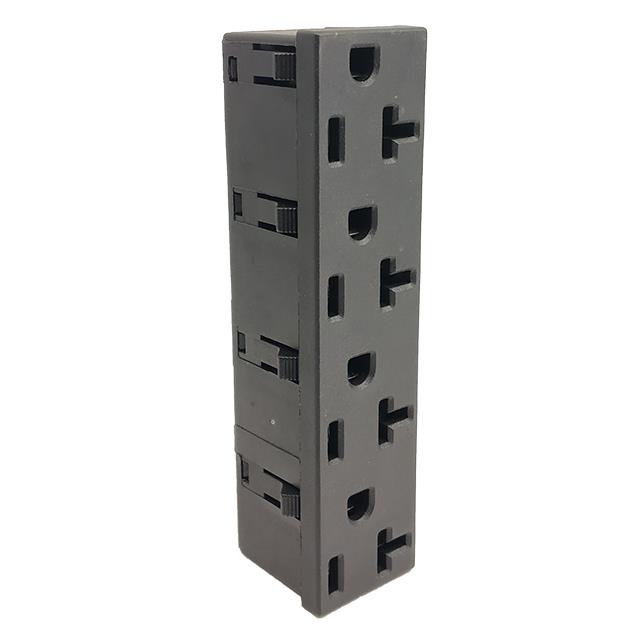

Detailed Description	Power Connector Receptacle, Female Socket NEMA 5-20R Panel Mount, Snap-In

Product Attributes

Category		Connectors, Interconnects AC Power Connectors Plugs and Receptacles
Manufacturer		Power Dynamics, Inc.
Series
Packaging		Bulk
Part Status		Active
Connector Type		Receptacle, Female Socket
Voltage Rating		125VAC
Current Rating (Amps)		20A
Mounting Type		Panel Mount, Snap-In
Number of Positions		4
Termination		Quick Connect - 0.250" (6.3mm)
Approval Agency		cUL, UL
Panel Thickness		0.039" ~ 0.078" (1.00mm ~ 2.00mm)
Panel Cutout Dimensions		Rectangular - 77.84mm x 24.30mm
Connector Style		NEMA 5-20R
Material Flammability Rating		UL94 V-0

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4030
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
