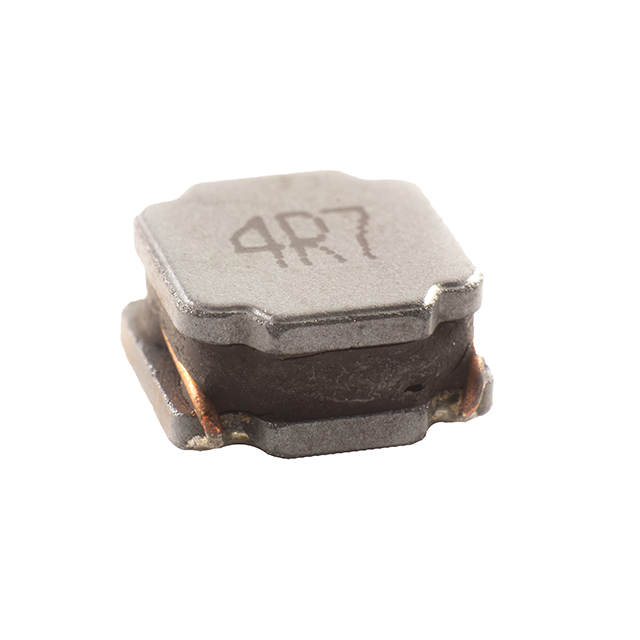

PCSV80-470M-RC

PCSV80-470M-RC

Part Number	PCSV80-470M-RC
Manufacturer	Allied Components International
Other Part Numbers	3475-PCSV80-470M-RCTR-ND 3475-PCSV80-470M-RCTR
Description	47UH 20% SHIELDED PWR INDUCTOR
Detailed Description	47 µH Shielded Wirewound Inductor 1.75 A 160mOhm 3131 (8080 Metric)
Datasheet	Datasheet

Product Attributes

Category		Inductors, Coils, Chokes Fixed Inductors
Manufacturer		Allied Components International
Series
Packaging		Tape & Reel (TR)
Part Status		Active
Tolerance		±20%
Package / Case		3131 (8080 Metric)
Size / Dimension		0.315" L x 0.315" W (8.00mm x 8.00mm)
Mounting Type		Surface Mount
Shielding		Shielded
Type		Wirewound
Operating Temperature		-55°C ~ 125°C
DC Resistance (DCR)		160mOhm
Current - Saturation (Isat)		1.9A
Inductance Frequency - Test		100 kHz
Supplier Device Package		3131
Height - Seated (Max)		0.165" (4.20mm)
Inductance		47 µH
Current Rating (Amps)		1.75 A

Documents & Media

RESOURCE TYPE		LINK
Datasheets		PCSV80-470M-RC

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.50.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH info available upon request
RoHS Status		RoHS Compliant
