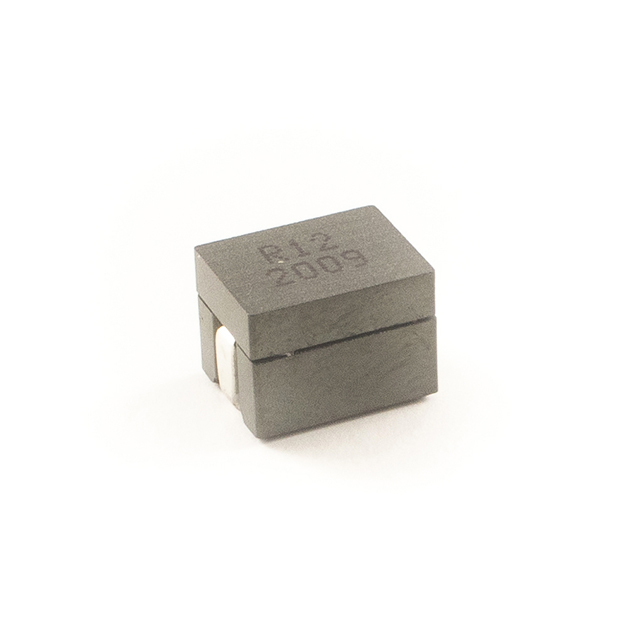

Part Number |
PCS1087-R12K-RC
|
---|---|
Manufacturer | Allied Components International |
Other Part Numbers |
3475-PCS1087-R12K-RCTR-ND
3475-PCS1087-R12K-RCTR
|
Description | 120nH +/- 10% Power Inductor |
Detailed Description | 120 nH Shielded Inductor 56 A 0.29mOhm Max Nonstandard |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | Allied Components International | |
Series | ||
Packaging |
Tape & Reel (TR)
|
|
Part Status | Active | |
Tolerance | ±10% | |
Package / Case | Nonstandard | |
Size / Dimension | 0.402" L x 0.315" W (10.20mm x 8.00mm) | |
Mounting Type | Surface Mount | |
Shielding | Shielded | |
Operating Temperature | -40°C ~ 125°C | |
DC Resistance (DCR) | 0.29mOhm Max | |
Current - Saturation (Isat) | 96A | |
Inductance Frequency - Test | 100 kHz | |
Height - Seated (Max) | 0.295" (7.50mm) | |
Inductance | 120 nH | |
Current Rating (Amps) | 56 A |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | PCS1087-R12K-RC |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8504.50.4000 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
REACH Status | REACH info available upon request | |
RoHS Status | RoHS Compliant |
