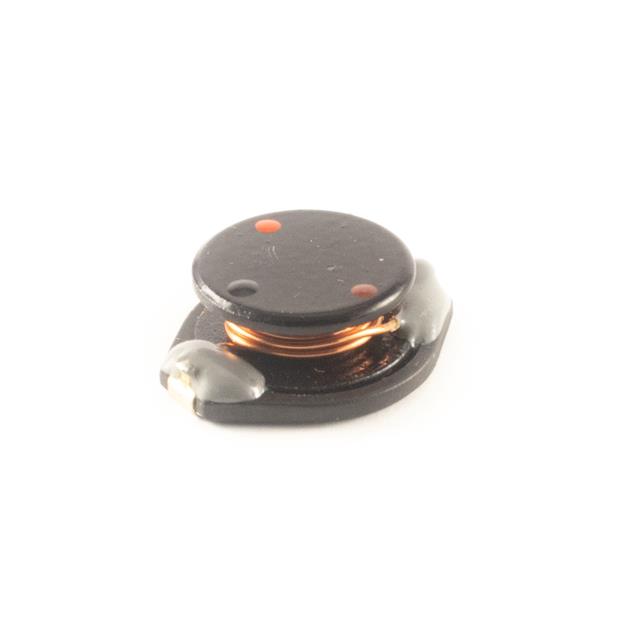

PCI60-2R2M-RC

PCI60-2R2M-RC

Part Number	PCI60-2R2M-RC
Manufacturer	Allied Components International
Other Part Numbers	3475-PCI60-2R2M-RCTR-ND 3475-PCI60-2R2M-RCTR
Description	2.2uH +/-20% Power Chip Inductor
Detailed Description	2.2 µH Unshielded Wirewound Inductor 7.1 A 14mOhm Max Nonstandard
Datasheet	Datasheet

Product Attributes

Category		Inductors, Coils, Chokes Fixed Inductors
Manufacturer		Allied Components International
Series
Packaging		Tape & Reel (TR)
Part Status		Active
Tolerance		±20%
Package / Case		Nonstandard
Size / Dimension		0.730" L x 0.600" W (18.54mm x 15.24mm)
Mounting Type		Surface Mount
Shielding		Unshielded
Type		Wirewound
Operating Temperature		-40°C ~ 85°C
DC Resistance (DCR)		14mOhm Max
Frequency - Self Resonant		80MHz
Current - Saturation (Isat)		16A
Inductance Frequency - Test		100 kHz
Height - Seated (Max)		0.280" (7.11mm)
Inductance		2.2 µH
Current Rating (Amps)		7.1 A

Documents & Media

RESOURCE TYPE		LINK
Datasheets		PCI60-2R2M-RC

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.50.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH info available upon request
RoHS Status		RoHS Compliant
