PCI50-330M-RC

PCI50-330M-RC

Part Number	PCI50-330M-RC
Manufacturer	Allied Components International
Other Part Numbers	3475-PCI50-330M-RCTR-ND 3475-PCI50-330M-RCTR

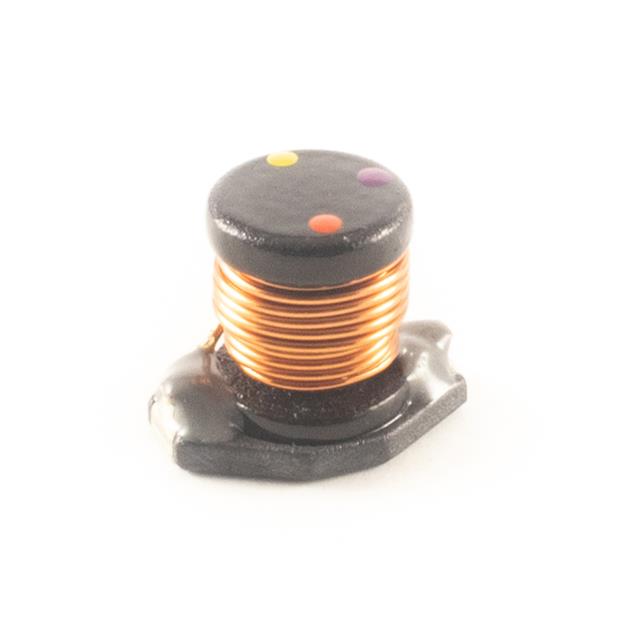

Description	33uH +/-20% Power Chip Inductor
Detailed Description	33 µH Unshielded Wirewound Inductor 2 A 80mOhm Max Nonstandard
Datasheet	Datasheet

Product Attributes

Category		Inductors, Coils, Chokes Fixed Inductors
Manufacturer		Allied Components International
Series		PCI50
Packaging		Tape & Reel (TR)
Part Status		Active
Tolerance		±20%
Package / Case		Nonstandard
Size / Dimension		0.510" L x 0.370" W (12.95mm x 9.40mm)
Mounting Type		Surface Mount
Shielding		Unshielded
Type		Wirewound
Operating Temperature		-40°C ~ 125°C
DC Resistance (DCR)		80mOhm Max
Frequency - Self Resonant		9MHz
Current - Saturation (Isat)		4A
Inductance Frequency - Test		100 kHz
Height - Seated (Max)		0.450" (11.43mm)
Inductance		33 µH
Current Rating (Amps)		2 A

Documents & Media

RESOURCE TYPE		LINK
Datasheets		PCI50-330M-RC

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.50.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH info available upon request
RoHS Status		RoHS Compliant
