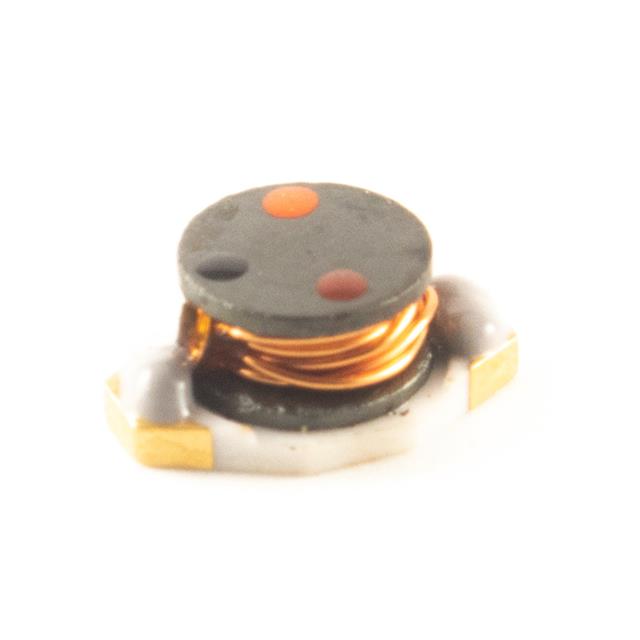

PCI20-6R8M-RC

PCI20-6R8M-RC

Part Number	PCI20-6R8M-RC
Manufacturer	Allied Components International
Other Part Numbers	3475-PCI20-6R8M-RCTR-ND 3475-PCI20-6R8M-RCTR
Description	6.8uH +/-20% Power Chip Inductor
Detailed Description	6.8 µH Unshielded Inductor 1.4 A 130mOhm Max Nonstandard
Datasheet	Datasheet

Product Attributes

Category		Inductors, Coils, Chokes Fixed Inductors
Manufacturer		Allied Components International
Series		PCI20
Packaging		Tape & Reel (TR)
Part Status		Active
Tolerance		±20%
Package / Case		Nonstandard
Size / Dimension		0.260" L x 0.175" W (6.60mm x 4.45mm)
Mounting Type		Surface Mount
Shielding		Unshielded
Operating Temperature		-40°C ~ 85°C
DC Resistance (DCR)		130mOhm Max
Frequency - Self Resonant		45MHz
Current - Saturation (Isat)		1.2A
Inductance Frequency - Test		100 kHz
Height - Seated (Max)		0.115" (2.92mm)
Inductance		6.8 µH
Current Rating (Amps)		1.4 A

Documents & Media

RESOURCE TYPE		LINK
Datasheets		PCI20-6R8M-RC

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.50.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH info available upon request
RoHS Status		RoHS Compliant
