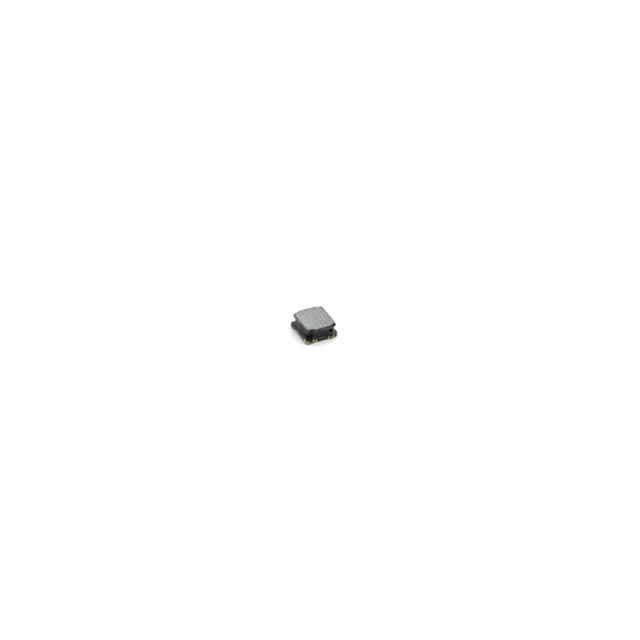

PCHP42NF-6R8M-RC

PCHP42NF-6R8M-RC

Part Number	PCHP42NF-6R8M-RC
Manufacturer	Allied Components International
Other Part Numbers	3475-PCHP42NF-6R8M-RCTR-ND 3475-PCHP42NF-6R8M-RCTR
Description	6.8UH 20% SMD SHIELDED POWER IND
Detailed Description	6.8 µH Shielded Inductor 1.6 A 98mOhm Max 1616 (4040 Metric)
Datasheet	Datasheet

Product Attributes

Category		Inductors, Coils, Chokes Fixed Inductors
Manufacturer		Allied Components International
Series
Packaging		Tape & Reel (TR)
Part Status		Active
Tolerance		±20%
Package / Case		1616 (4040 Metric)
Size / Dimension		0.157" L x 0.157" W (4.00mm x 4.00mm)
Mounting Type		Surface Mount
Shielding		Shielded
Operating Temperature		-40°C ~ 125°C
DC Resistance (DCR)		98mOhm Max
Current - Saturation (Isat)		1.6A
Inductance Frequency - Test		100 kHz
Supplier Device Package		1616
Height - Seated (Max)		0.071" (1.80mm)
Inductance		6.8 µH
Current Rating (Amps)		1.6 A

Documents & Media

RESOURCE TYPE		LINK
Datasheets		PCHP42NF-6R8M-RC

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.50.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		Vendor Undefined
RoHS Status		ROHS3 Compliant
