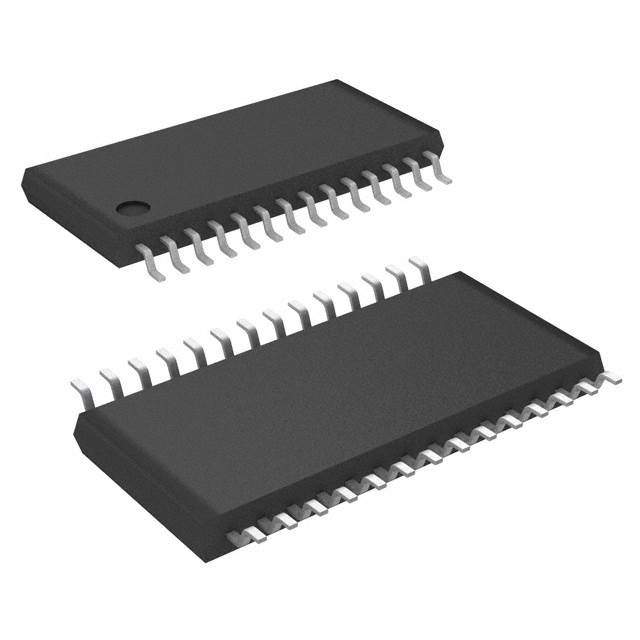

PCA9685PW,112

Part Number
PCA9685PW,112
Manufacturer NXP Semiconductors
Other Part Numbers
568-8366-5-ND
PCA9685PW
PCA9685PW-ND
935285129112
2156-PCA9685PW,112
PCA9685PW,112-ND
568-8366-5
NXPNXPPCA9685PW,112
PCA9685PW112
Description IC LED DRVR LIN PWM 25MA 28TSSOP
Detailed Description LED Driver IC 16 Output Linear PWM Dimming 25mA 28-TSSOP
Manufacturer Standard Lead Time 18 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer NXP Semiconductors
Series
Packaging
Tube
Part Status Active
Package / Case 28-TSSOP (0.173", 4.40mm Width)
Voltage - Output 5.5V
Mounting Type Surface Mount
Number of Outputs 16
Type Linear
Operating Temperature -40°C ~ 85°C (TA)
Applications Backlight
Current - Output / Channel 25mA
Internal Switch(s) Yes
Supplier Device Package 28-TSSOP
Dimming PWM
Voltage - Supply (Min) 2.3V
Voltage - Supply (Max) 5.5V

Documents & Media

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.39.0001
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 5990

Can ship immediately.
PACKAGING QUANTITY UNIT PRICE EXT PRICE
{{ p.name }} {{ numberFormat(p.buyQty) }} {{ priceFormat(p.unitPrice) }} {{ priceFormat(p.totalPrice) }}
Total Amount: {{ priceFormat(quotes.total) }} (including {{ priceFormat(quotes.fee) }} fee)

{{ package.name }}

QUANTITY UNIT PRICE EXT PRICE
{{ numberFormat(price.break_quantity) }} {{ priceFormat(price.unit_price) }} {{ priceFormat(price.break_quantity * price.unit_price) }}
Detailed pricing is currently unavailable.
Detailed packaging information is temporarily unavailable.
