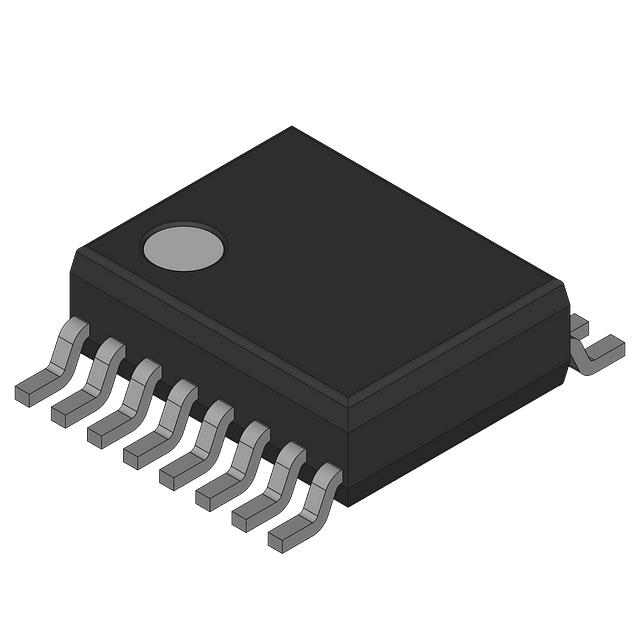

PCA9534DB

Part Number
PCA9534DB
Manufacturer National Semiconductor
Other Part Numbers
2156-PCA9534DB-ND
TEXTISPCA9534DB
2156-PCA9534DB
Description PCA9534 REMOTE 8-BIT I2C AND LOW
Detailed Description I/O Expander 8 I2C, SMBus 400 kHz 16-SSOP

Product Attributes

Category
Manufacturer National Semiconductor
Series
Packaging
Bulk
Part Status Active
Features POR
Package / Case 16-SSOP (0.209", 5.30mm Width)
Output Type Push-Pull
Mounting Type Surface Mount
Interface I2C, SMBus
Number of I/O 8
Operating Temperature -40°C ~ 85°C
Voltage - Supply 2.3V ~ 5.5V
Clock Frequency 400 kHz
Interrupt Output Yes
Supplier Device Package 16-SSOP
Current - Output Source/Sink 10mA, 25mA
DigiKey Programmable Not Verified
