PCA9532PW,112

Part Number
PCA9532PW,112
Manufacturer NXP Semiconductors
Other Part Numbers
568-1040-5-ND
568-1040-5
935272837112
NXPNXPPCA9532PW,112
PCA9532PW112
PCA9532PW
2156-PCA9532PW,112
Description IC LED DRVR PS I2C 25MA 24TSSOP
Detailed Description LED Driver IC 16 Output Power Switch I2C Dimming 25mA 24-TSSOP
Manufacturer Standard Lead Time 18 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer NXP Semiconductors
Series
Packaging
Tube
Part Status Active

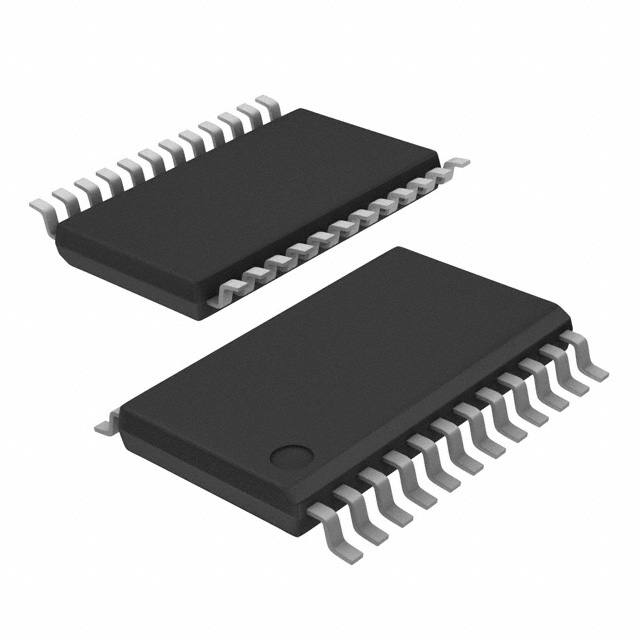

Package / Case 24-TSSOP (0.173", 4.40mm Width)
Mounting Type Surface Mount
Number of Outputs 16
Type Power Switch
Operating Temperature -40°C ~ 85°C (TA)
Applications Backlight
Current - Output / Channel 25mA
Internal Switch(s) Yes
Supplier Device Package 24-TSSOP
Dimming I2C
Voltage - Supply (Min) 2.3V
Voltage - Supply (Max) 5.5V

Documents & Media

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.39.0001
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 8050

Can ship immediately.
