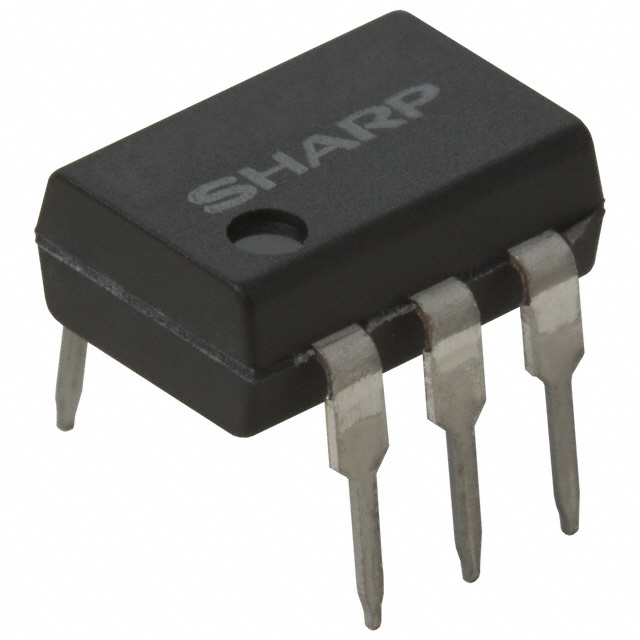

PC901V0NSZX _ Logic Output Optoisolators_Optoisolators_Isolators

Part Number	PC901V0NSZX
Manufacturer	Sharp Microelectronics
Other Part Numbers	425-1532-5-ND 425-1532-5
Description	OPTOISO 5KV OPEN COLLECTOR 6DIP
Detailed Description	Logic Output Optoisolator Open Collector 5000Vrms 1 Channel 2kV/µs (Typ) CMTI 6-DIP

Category		Isolators Optoisolators Logic Output Optoisolators
Manufacturer		Sharp Microelectronics
Series		OPIC™
Packaging		Tube
Part Status		Obsolete
Package / Case		6-DIP (0.300", 7.62mm)
Output Type		Open Collector
Mounting Type		Through Hole
Operating Temperature		-25°C ~ 85°C
Voltage - Supply		3V ~ 15V
Voltage - Forward (Vf) (Typ)		1.1V
Input Type		DC
Voltage - Isolation		5000Vrms
Current - DC Forward (If) (Max)		50mA
Inputs - Side 1/Side 2		1/0
Supplier Device Package		6-DIP
Rise / Fall Time (Typ)		100ns, 50ns
Common Mode Transient Immunity (Min)		2kV/µs (Typ)
Propagation Delay tpLH / tpHL (Max)		3µs, 6µs
Number of Channels		1
Current - Output / Channel		50 mA

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.49.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS non-compliant

This product is no longer manufactured.
