PC844IJ1 _ Transistor, Photovoltaic Output Optoisolators_Optoisolators_Isolators

Part Number	PC844IJ1
Manufacturer	Sharp Microelectronics
Other Part Numbers	425-1493-5-ND 425-1493-5
Description	OPTOISOLTR 5KV 4CH TRANS 16-SMD
Detailed Description	Optoisolator Transistor Output 5000Vrms 4 Channel 16-SMD

Category		Isolators Optoisolators Transistor, Photovoltaic Output Optoisolators
Manufacturer		Sharp Microelectronics
Series
Packaging		Tube
Part Status		Obsolete

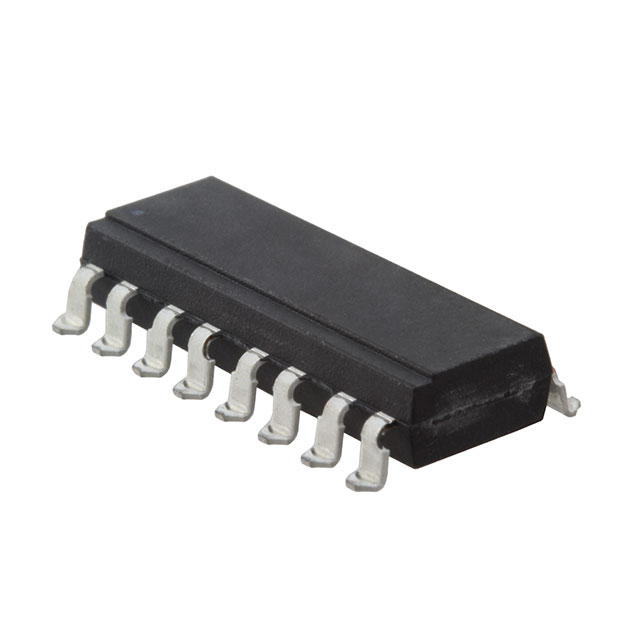

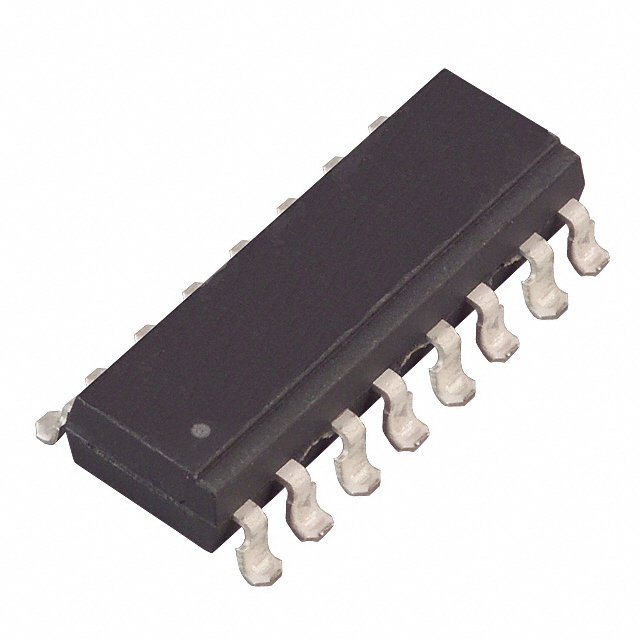

Package / Case		16-SMD, Gull Wing
Output Type		Transistor
Mounting Type		Surface Mount
Operating Temperature		-30°C ~ 100°C
Voltage - Forward (Vf) (Typ)		1.2V
Input Type		AC, DC
Current - Output / Channel		50mA
Voltage - Isolation		5000Vrms
Current Transfer Ratio (Min)		20% @ 1mA
Vce Saturation (Max)		200mV
Current Transfer Ratio (Max)		300% @ 1mA
Supplier Device Package		16-SMD
Voltage - Output (Max)		80V
Rise / Fall Time (Typ)		4µs, 3µs
Number of Channels		4
Current - DC Forward (If) (Max)		50 mA

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.49.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS non-compliant

This product is no longer manufactured.
