Part Number |
PC81710NIP1H
|
---|---|
Manufacturer | Sharp Microelectronics |
Other Part Numbers |
PC81710NIP1H-ND
|
Description | OPTOISOLATOR 5KV TRANS SMD |
Detailed Description | Optoisolator Transistor Output 5000Vrms 1 Channel 4-SMD |
Category | ||
---|---|---|
Manufacturer | Sharp Microelectronics | |
Series | ||
Packaging |
Tape & Reel (TR)
|
|
Part Status | Discontinued | |

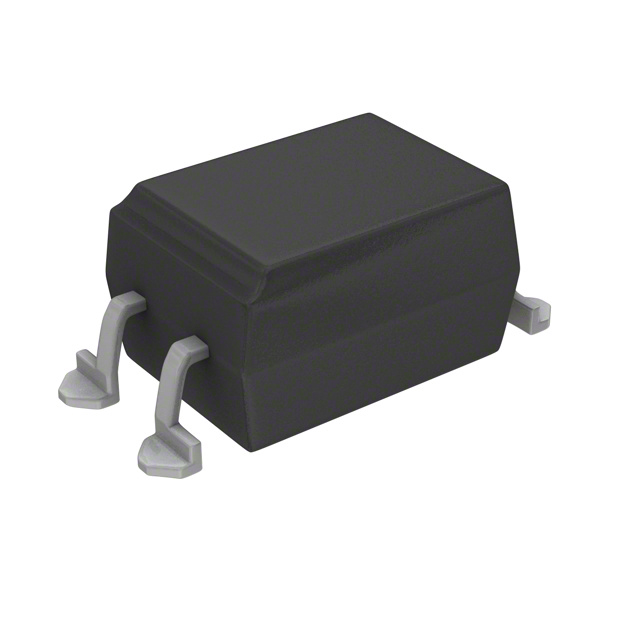

Package / Case | 4-SMD, Gull Wing | |
Output Type | Transistor | |
Mounting Type | Surface Mount | |
Operating Temperature | -30°C ~ 100°C | |
Voltage - Forward (Vf) (Typ) | 1.2V | |
Input Type | DC | |
Current - Output / Channel | 50mA | |
Voltage - Isolation | 5000Vrms | |
Vce Saturation (Max) | 200mV | |
Supplier Device Package | 4-SMD | |
Voltage - Output (Max) | 80V | |
Rise / Fall Time (Typ) | 4µs, 3µs | |
Number of Channels | 1 | |
Current - DC Forward (If) (Max) | 10 mA |
RESOURCE TYPE | LINK |
---|
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8541.49.8000 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
RoHS Status | RoHS Compliant |
