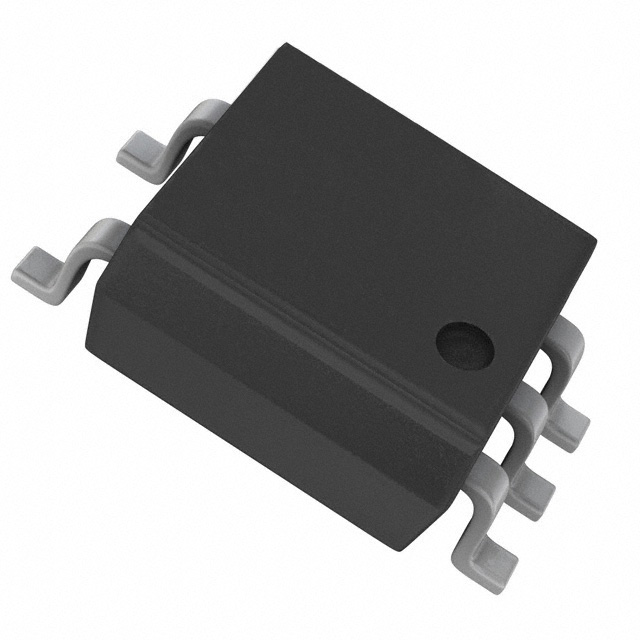

PC410L0YIT0F _ Logic Output Optoisolators_Optoisolators_Isolators

Part Number	PC410L0YIT0F
Manufacturer	Sharp Microelectronics
Other Part Numbers	PC410L0YIT0F-ND
Description	OPTOISO 3.75KV OPEN COLL 5MFP
Detailed Description	Logic Output Optoisolator 10Mbps Open Collector 3750Vrms 1 Channel 10kV/µs CMTI 5-MFP
Datasheet	Datasheet

Category		Isolators Optoisolators Logic Output Optoisolators
Manufacturer		Sharp Microelectronics
Series		OPIC™
Packaging		Tape & Reel (TR)
Part Status		Obsolete
Package / Case		6-SOIC (0.173", 4.40mm Width), 5 Leads
Output Type		Open Collector
Mounting Type		Surface Mount
Operating Temperature		-40°C ~ 85°C
Voltage - Supply		4.5V ~ 5.5V
Voltage - Forward (Vf) (Typ)		1.6V
Data Rate		10Mbps
Input Type		DC
Voltage - Isolation		3750Vrms
Current - DC Forward (If) (Max)		20mA
Inputs - Side 1/Side 2		1/0
Supplier Device Package		5-MFP
Rise / Fall Time (Typ)		20ns, 10ns
Common Mode Transient Immunity (Min)		10kV/µs
Propagation Delay tpLH / tpHL (Max)		75ns, 75ns
Number of Channels		1
Current - Output / Channel		50 mA

RESOURCE TYPE		LINK
Datasheets		GP2(L,S) 04/Apr/2011

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.49.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)

This product is no longer manufactured.
