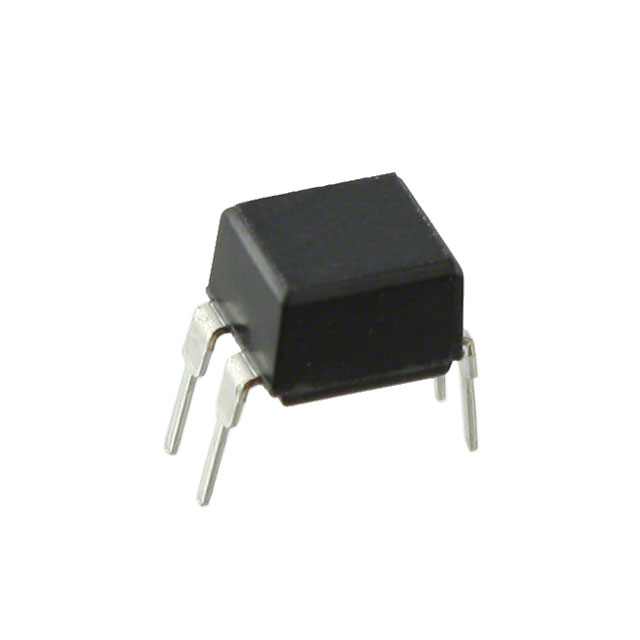

PC123Y2 _ Transistor, Photovoltaic Output Optoisolators_Optoisolators_Isolators

Part Number	PC123Y2
Manufacturer	Sharp Microelectronics
Other Part Numbers	425-1319-5-ND 425-1319-5
Description	OPTOISOLATR 5KV TRANSISTOR 4-DIP
Detailed Description	Optoisolator Transistor Output 5000Vrms 1 Channel 4-DIP

Category		Isolators Optoisolators Transistor, Photovoltaic Output Optoisolators
Manufacturer		Sharp Microelectronics
Series
Packaging		Tube
Part Status		Obsolete
Package / Case		4-DIP (0.300", 7.62mm)
Output Type		Transistor
Mounting Type		Through Hole
Operating Temperature		-30°C ~ 100°C
Voltage - Forward (Vf) (Typ)		1.2V
Input Type		DC
Current - Output / Channel		50mA
Voltage - Isolation		5000Vrms
Current Transfer Ratio (Min)		100% @ 5mA
Vce Saturation (Max)		200mV
Current Transfer Ratio (Max)		250% @ 5mA
Supplier Device Package		4-DIP
Voltage - Output (Max)		70V
Rise / Fall Time (Typ)		4µs, 3µs
Number of Channels		1
Current - DC Forward (If) (Max)		50 mA

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.49.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS non-compliant

This product is no longer manufactured.
