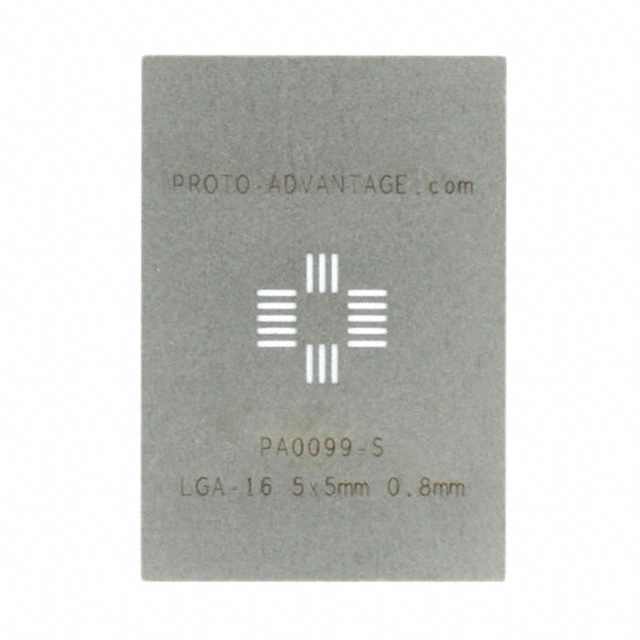

PA0099-S

Part Number
PA0099-S
Manufacturer Chip Quik, Inc.
Other Part Numbers
PA0099-S-ND
Description LGA-16 STENCIL
Manufacturer Standard Lead Time 2 weeks

Product Attributes

Category
Manufacturer Chip Quik, Inc.
Series
Proto-Advantage PA
Packaging
Bulk
Part Status Active
Material Stainless Steel
Pitch 0.031" (0.80mm)
Type LGA
Inner Dimension 0.197" L x 0.197" W (5.00mm x 5.00mm)
Outer Dimension 1.300" L x 0.900" W (33.02mm x 22.86mm)
Number of Positions 16

Documents & Media

RESOURCE TYPE LINK
Datasheets PA0099-S
Datasheets Stencil Selection Guilde
Datasheets Circuit Assembly Instr

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 7218.10.0000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

Available To Order

PACKAGING QUANTITY UNIT PRICE EXT PRICE
{{ p.name }} {{ numberFormat(p.buyQty) }} {{ priceFormat(p.unitPrice) }} {{ priceFormat(p.totalPrice) }}
Total Amount: {{ priceFormat(quotes.total) }} (including {{ priceFormat(quotes.fee) }} fee)

{{ package.name }}

QUANTITY UNIT PRICE EXT PRICE
{{ numberFormat(price.break_quantity) }} {{ priceFormat(price.unit_price) }} {{ priceFormat(price.break_quantity * price.unit_price) }}
Detailed pricing is currently unavailable.
Detailed packaging information is temporarily unavailable.
