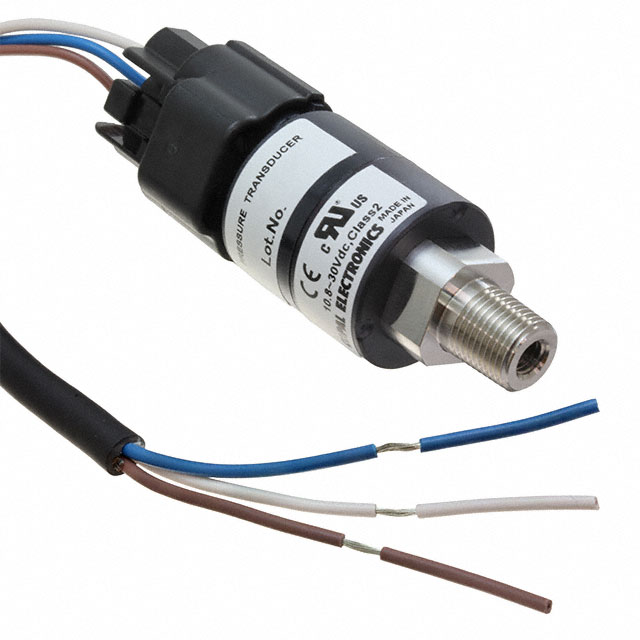

PA-750-103G-R1

PA-750-103G-R1

Part Number	PA-750-103G-R1
Manufacturer	Nidec Copal Electronics (Nidec Components)
Other Part Numbers	563-2180-ND 563-2180 PA-750-103G-R1-ND
Description	PRESSURE TRANSDUCERS WITH AMP.
Manufacturer Standard Lead Time	10 weeks
Datasheet	Datasheet

Product Attributes

Category		Sensors, Transducers Pressure Sensors, Transducers - Industrial
Manufacturer		Nidec Copal Electronics (Nidec Components)
Series		PA-750
Packaging		Bulk
Part Status		Active
Features		Temperature Compensated
Package / Case		Cylinder
Output Type		Analog Voltage
Output		1 V ~ 5 V
Operating Pressure		145.04PSI (1000kPa)
Pressure Type		Gauge
Operating Temperature		-20°C ~ 80°C
Termination Style		Cable
Voltage - Supply		10.8V ~ 30V
Port Size		Female - M5
Applications		Industrial Automation
Port Style		Threaded
Maximum Pressure		290.08PSI (2000kPa)

Documents & Media

RESOURCE TYPE		LINK
Datasheets		PA-750-103G-R1

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		9026.20.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant
