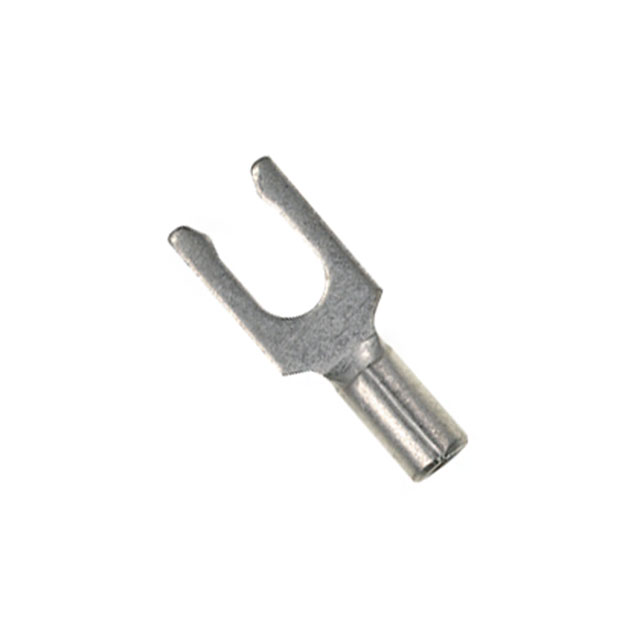

P14-10LFN-C

P14-10LFN-C

Part Number	P14-10LFN-C
Manufacturer	Panduit Corporation
Other Part Numbers	298-22644-ND P14-10LFN-C-ND 298-22644
Description	CONN SPADE TERM 14-16AWG #10
Detailed Description	10 Stud Spade Terminal Connector Crimp 14-16 AWG
Manufacturer Standard Lead Time	3 weeks
Datasheet	Datasheet

Product Attributes

Category		Connectors, Interconnects Terminals Spade Connectors
Manufacturer		Panduit Corporation
Series		Pan-Term®
Packaging		Bulk
Part Status		Active
Features		Brazed Seam, Serrated Termination
Contact Finish		Tin
Mounting Type		Free Hanging (In-Line)
Wire Gauge		14-16 AWG
Insulation		Non-Insulated
Terminal Type		Spring, Snap
Stud/Tab Size		10 Stud
Length - Overall		0.770" (19.56mm)
Termination		Crimp
Width - Outer Edges		0.290" (7.37mm)
Contact Material		Copper

Documents & Media

RESOURCE TYPE		LINK
Datasheets		P14-10LFN-C

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 212

Can ship immediately.
