OSTOQ027151

OSTOQ027151

Part Number	OSTOQ027151
Manufacturer	On-Shore Technology, Inc.
Other Part Numbers	ED2791-ND OSTOQ027151-ND ED2791

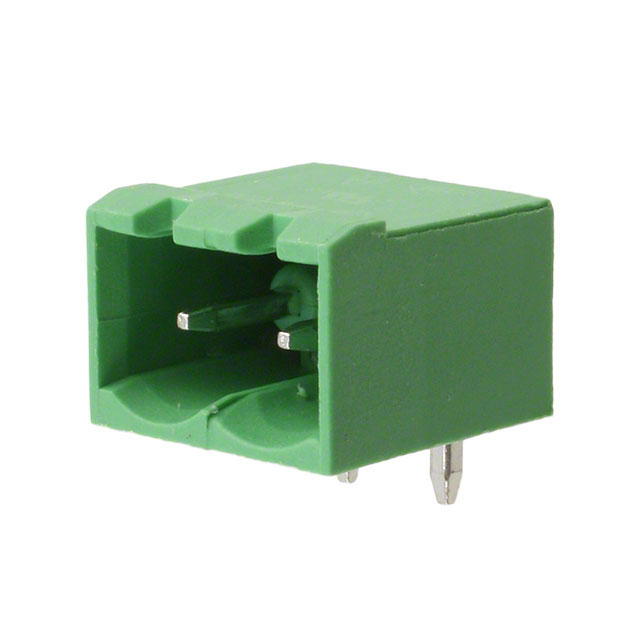

Description	TERM BLOCK HDR 2POS 90DEG 5MM
Detailed Description	2 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.197" (5.00mm) 90°, Right Angle Solder
Manufacturer Standard Lead Time	8 weeks
Datasheet	Datasheet

Product Attributes

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		On-Shore Technology, Inc.
Series		OSTOQ
Packaging		Bulk
Part Status		Active
Mounting Type		Solder
Number of Positions		2
Pitch		0.197" (5.00mm)
Type		Header, Male Pins, Shrouded (4 Side)
Operating Temperature		-40°C ~ 115°C
Number of Levels		1
Positions Per Level		2
Contact Material		Brass
Header Orientation		90°, Right Angle
Housing Material		Thermoplastic
Contact Mating Finish		Tin
Contact Tail Length		0.157" (4.00mm)
Insulation Height		0.157" (4.00mm)
Voltage - UL		300 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		OSTOQ027151

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 1249

Can ship immediately.
