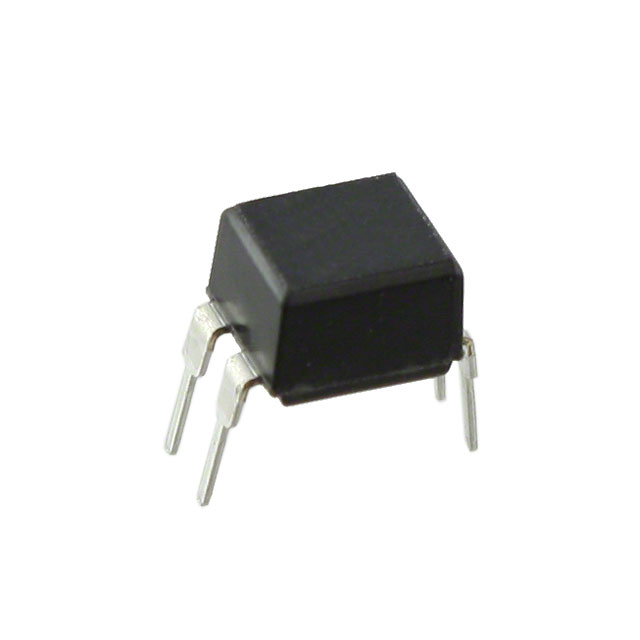

Part Number |
OPIA815DTUE
|
---|---|
Manufacturer | TT Electronics / Optek Technology |
Other Part Numbers |
365-1438-ND
OPIA411DTU
365-1438
|
Description | OPTOISOLTR 5KV DARLINGTON 4-DIP |
Detailed Description | Optoisolator Darlington Output 5000Vrms 1 Channel 4-DIP |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | TT Electronics / Optek Technology | |
Series | ||
Packaging |
Tube
|
|
Part Status | Obsolete | |
Package / Case | 4-DIP (0.300", 7.62mm) | |
Output Type | Darlington | |
Mounting Type | Through Hole | |
Operating Temperature | -30°C ~ 100°C | |
Voltage - Forward (Vf) (Typ) | 1.2V | |
Input Type | DC | |
Current - Output / Channel | 80mA | |
Voltage - Isolation | 5000Vrms | |
Current Transfer Ratio (Min) | 70% @ 50µA | |
Vce Saturation (Max) | 1V | |
Supplier Device Package | 4-DIP | |
Voltage - Output (Max) | 35V | |
Rise / Fall Time (Typ) | 80µs, 72µs | |
Number of Channels | 1 | |
Current - DC Forward (If) (Max) | 50 mA |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | OPIA815DTUE |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8541.49.8000 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
REACH Status | REACH Unaffected | |
RoHS Status | ROHS3 Compliant |
