OP11GP

Part Number
OP11GP
Manufacturer Linear Technology (Analog Devices, Inc.)
Other Part Numbers
2156-OP11GP-AD-ND
2156-OP11GP-AD
ANAANAOP11GP
Description IC OPAMP QUAD 741-TYPE 14-DIP
Detailed Description General Purpose Amplifier 4 Circuit 14-PDIP
Datasheet Datasheet

Product Attributes

Category
Manufacturer Linear Technology (Analog Devices, Inc.)
Series
Packaging
Tube
Part Status Obsolete

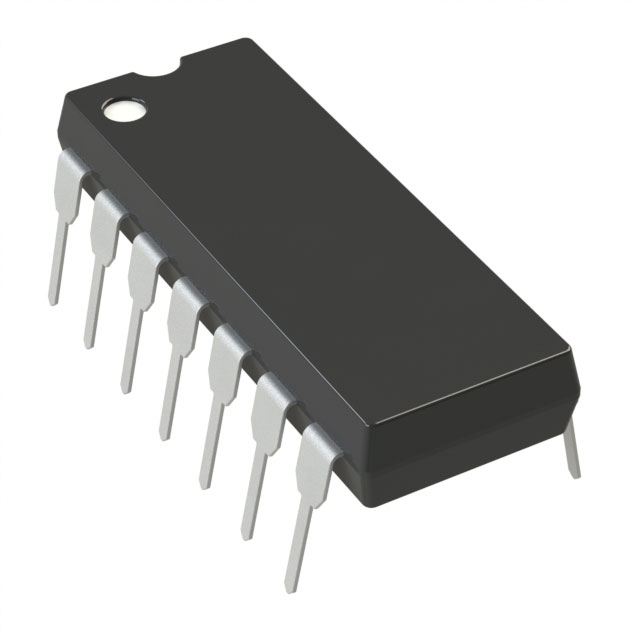

Package / Case 14-DIP (0.300", 7.62mm)
Mounting Type Through Hole
Amplifier Type General Purpose
Operating Temperature -40°C ~ 85°C
Slew Rate 1V/µs
Gain Bandwidth Product 3 MHz
Current - Input Bias 300 nA
Voltage - Input Offset 1.2 mV
Supplier Device Package 14-PDIP
Number of Circuits 4
Voltage - Supply Span (Min) 10 V
Voltage - Supply Span (Max) 30 V

Documents & Media

RESOURCE TYPE LINK
Datasheets OP11GP

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.33.0001
Moisture Sensitivity Level (MSL) 1 (Unlimited)

Obsolete

This product is no longer manufactured.
