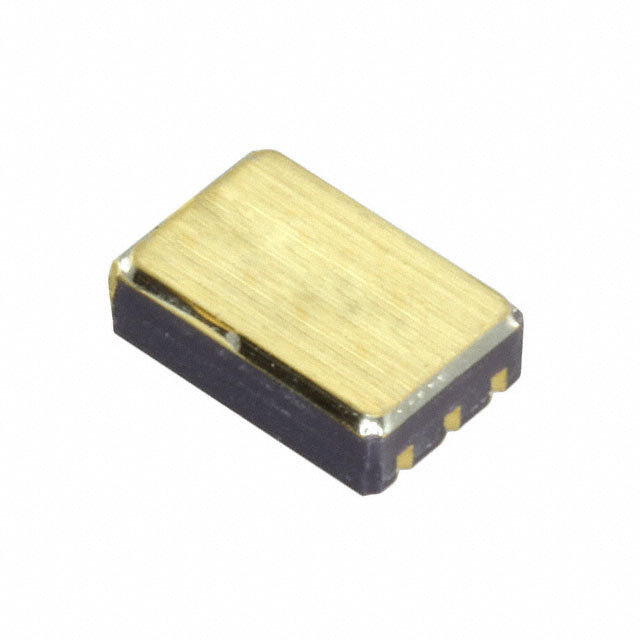

OLS449

OLS449

Part Number	OLS449
Manufacturer	Skyworks Solutions, Inc.
Other Part Numbers	3320-OLS449-ND 863-OLS449-NDL Q12639424A 863-1605-ND 3320-OLS449 863-1605
Description	OPTOISO 1KV 40MA SMT
Detailed Description	Optoisolator Transistor with Base Output 1000VDC 1 Channel 6-CLCC (6.22x4.32)
Manufacturer Standard Lead Time	18 weeks

Product Attributes

Category		Isolators Optoisolators Transistor, Photovoltaic Output Optoisolators
Manufacturer		Skyworks Solutions, Inc.
Series
Packaging		Tube
Part Status		Active
Package / Case		6-CLCC
Output Type		Transistor with Base
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 125°C
Voltage - Forward (Vf) (Typ)		1.7V (Max)
Input Type		DC
Current - Output / Channel		50mA
Voltage - Isolation		1000VDC
Supplier Device Package		6-CLCC (6.22x4.32)
Voltage - Output (Max)		65V
Rise / Fall Time (Typ)		25µs, 25µs (Max)
Number of Channels		1
Current - DC Forward (If) (Max)		40 mA

Documents & Media

RESOURCE TYPE		LINK
Datasheets		OLS449
Datasheets		Optocoupler Product Selector Guide

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.49.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS non-compliant

In Stock: 142

Can ship immediately.
