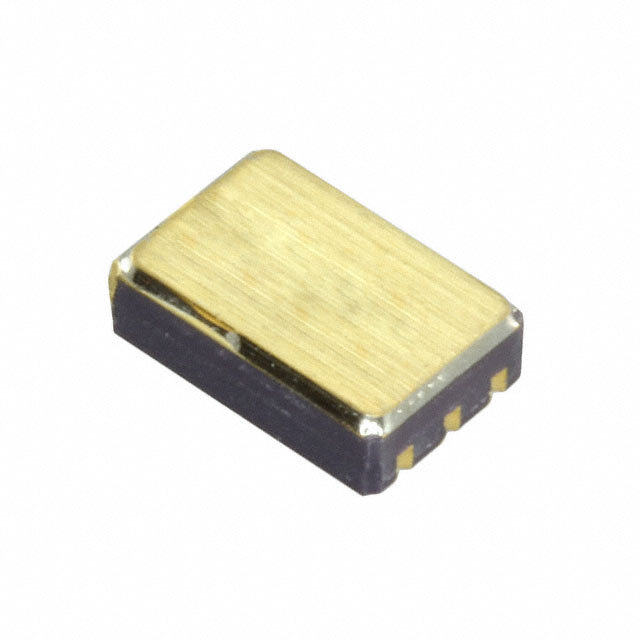

OLS300SX

OLS300SX

Part Number	OLS300SX
Manufacturer	Skyworks Solutions, Inc.
Other Part Numbers	3320-OLS300SX-ND 3320-OLS300SX 863-OLS300SX 863-OLS300SX-ND
Description	HERMETIC SURFACE MOUNT LOW INPUT
Detailed Description	Optoisolator Transistor Output 1500VDC 1 Channel 6-CLCC (6.22x4.32)
Manufacturer Standard Lead Time	18 weeks
Datasheet	Datasheet

Product Attributes

Category		Isolators Optoisolators Transistor, Photovoltaic Output Optoisolators
Manufacturer		Skyworks Solutions, Inc.
Series
Packaging		Bulk
Part Status		Active
Package / Case		6-CLCC
Output Type		Transistor
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 125°C
Voltage - Forward (Vf) (Typ)		1.7V
Input Type		DC
Current - Output / Channel		8mA
Voltage - Isolation		1500VDC
Current Transfer Ratio (Min)		20% @ 10mA
Supplier Device Package		6-CLCC (6.22x4.32)
Turn On / Turn Off Time (Typ)		300ns, 500ns
Number of Channels		1
Current - DC Forward (If) (Max)		40 mA

Documents & Media

RESOURCE TYPE		LINK
Datasheets		OLS300SX

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
Moisture Sensitivity Level (MSL)		1 (Unlimited)
