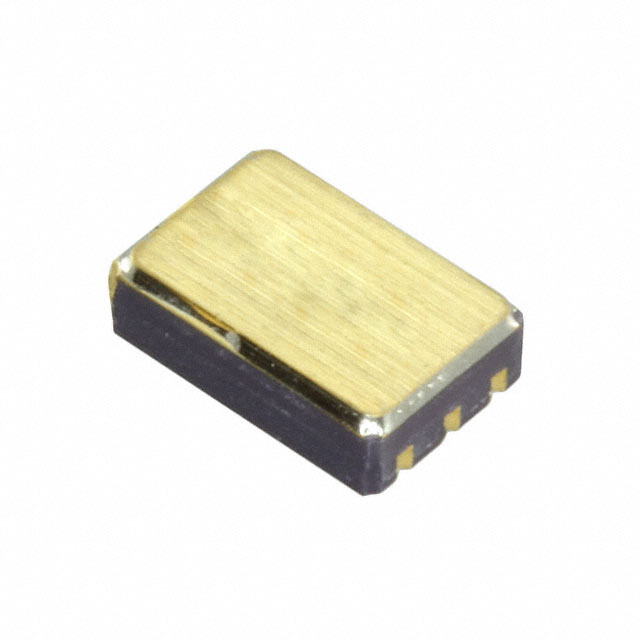

OLS249

OLS249

Part Number	OLS249
Manufacturer	Skyworks Solutions, Inc.
Other Part Numbers	3320-OLS249-ND 3320-OLS249 863-1603 863-1603-ND
Description	RADIATION CAPABLE OPTOISOLATOR
Detailed Description	Optoisolator Transistor with Base Output 1500VDC 1 Channel 6-CLCC (6.22x4.32)
Manufacturer Standard Lead Time	18 weeks
Datasheet	Datasheet

Product Attributes

Category		Isolators Optoisolators Transistor, Photovoltaic Output Optoisolators
Manufacturer		Skyworks Solutions, Inc.
Series
Packaging		Tube
Part Status		Active
Package / Case		6-CLCC
Output Type		Transistor with Base
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 125°C
Voltage - Forward (Vf) (Typ)		1.8V (Max)
Input Type		DC
Current - Output / Channel		50mA
Voltage - Isolation		1500VDC
Vce Saturation (Max)		300mV
Supplier Device Package		6-CLCC (6.22x4.32)
Voltage - Output (Max)		40V
Rise / Fall Time (Typ)		25µs, 25µs (Max)
Number of Channels		1
Current - DC Forward (If) (Max)		40 mA

Documents & Media

RESOURCE TYPE		LINK
Datasheets		Optocoupler Product Selector Guide

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.49.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 2387

Can ship immediately.
