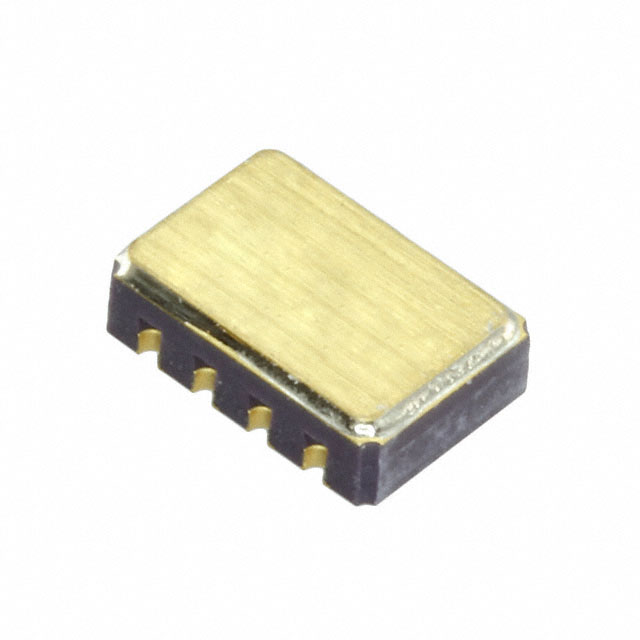

OLS2449

OLS2449

Part Number	OLS2449
Manufacturer	Skyworks Solutions, Inc.
Other Part Numbers	3320-OLS2449-ND 3320-OLS2449 863-1608 863-1608-ND
Description	OPTOISO 1.5KV 40MA SMT
Detailed Description	Optoisolator Transistor Output 1500VDC 2 Channel 8-SMT
Manufacturer Standard Lead Time	18 weeks
Datasheet	Datasheet

Product Attributes

Category		Isolators Optoisolators Transistor, Photovoltaic Output Optoisolators
Manufacturer		Skyworks Solutions, Inc.
Series
Packaging		Tube
Part Status		Active
Package / Case		8-DFN
Output Type		Transistor
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 125°C
Voltage - Forward (Vf) (Typ)		1.7V (Max)
Input Type		DC
Current - Output / Channel		50mA
Voltage - Isolation		1500VDC
Supplier Device Package		8-SMT
Voltage - Output (Max)		65V
Rise / Fall Time (Typ)		25µs, 25µs (Max)
Number of Channels		2
Current - DC Forward (If) (Max)		40 mA

Documents & Media

RESOURCE TYPE		LINK
Datasheets		Optocoupler Product Selector Guide

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.49.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant

In Stock: 93

Can ship immediately.
