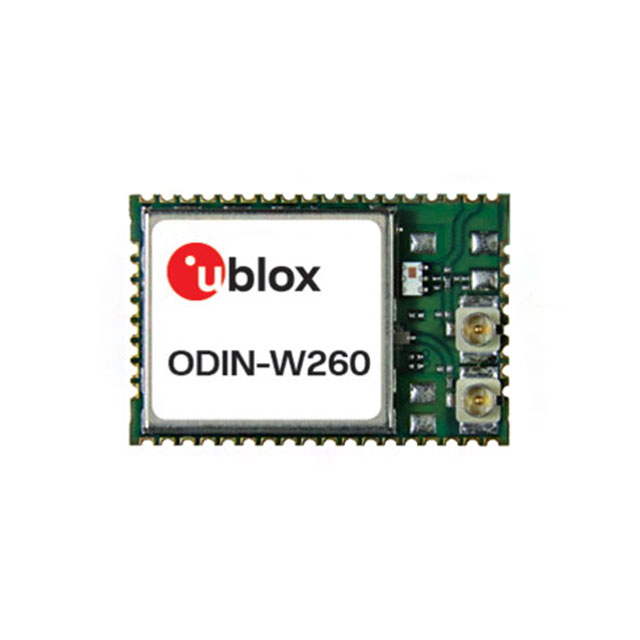

ODIN-W260-05B _ RF Transceiver Modules and Modems_RF and Wireless

Part Number	ODIN-W260-05B
Manufacturer	u-blox
Other Part Numbers	672-ODIN-W260-05BTR-ND 672-ODIN-W260-05B-00TR-ND 672-ODIN-W260-05BTR 672-ODIN-W260-05BDKRINACTIVE ODIN-W260-05B-01 ODIN-W260-05B-00 672-ODIN-W260-05B-00CTINACTIVE-ND ODIN-W260-05B-ND 672-ODIN-W260-05BCTINACTIVE 672-ODIN-W260-05B-00DKRINACTIVE-ND
Description	RF TXRX MOD BLUETOOTH U.FL SMD
Detailed Description	Bluetooth, WiFi 802.11a/b/g/n, Bluetooth v4.0 +EDR Transceiver Module 2.4GHz ~ 2.5GHz, 5.18GHz ~ 5.825GHz Antenna Not Included, U.FL Surface Mount
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Category		RF and Wireless RF Transceiver Modules and Modems
Manufacturer		u-blox
Series		ODIN-W2
Packaging		Tape & Reel (TR)
Part Status		Active
Package / Case		52-SMD Module
Sensitivity		-95dBm
Mounting Type		Surface Mount
Frequency		2.4GHz ~ 2.5GHz, 5.18GHz ~ 5.825GHz
Memory Size		2MB Flash, 256kB RAM
Operating Temperature		-40°C ~ 85°C
Voltage - Supply		3V ~ 3.6V
Power - Output		18dBm
Data Rate		130Mbps
Protocol		802.11a/b/g/n, Bluetooth v4.0 +EDR
Current - Receiving		140mA
Current - Transmitting		250mA
Antenna Type		Antenna Not Included, U.FL
Utilized IC / Part		STM32, TI WL8
Modulation		4DQPSK, 8DPSK, CCK, DSSS, GFSK, OFDM
RF Family/Standard		Bluetooth, WiFi
Serial Interfaces		ADC, GPIO, I2C, SPI, UART
DigiKey Programmable		Not Verified

RESOURCE TYPE		LINK
Datasheets		General Terms and Conditions of Sales of u-blox AG
Datasheets		ODIN-W2 Series Summary

ATTRIBUTE		DESCRIPTION
ECCN		5A992C
HTSUS		8517.62.0090
Moisture Sensitivity Level (MSL)		4 (72 Hours)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
