OD6025-12HHB

Part Number
OD6025-12HHB
Manufacturer Orion Fans
Other Part Numbers
OD6025-12HHB-ND
OD602512HHB
OD6025-12HHBX
3937-OD6025-12HHB

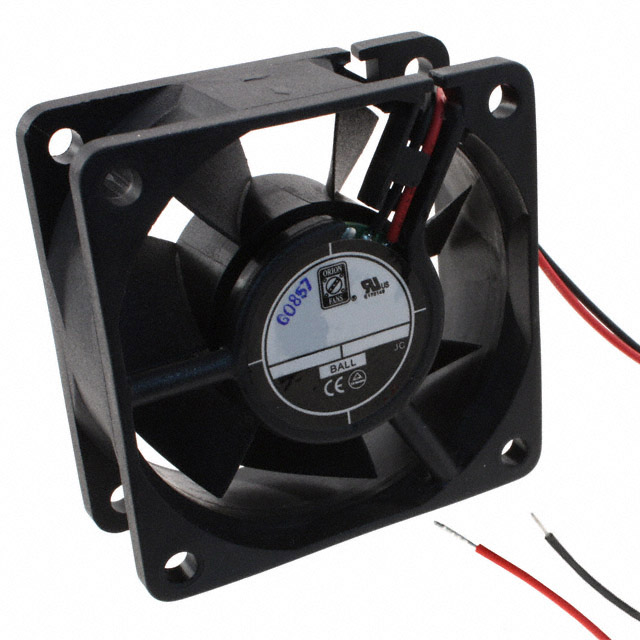

Description FAN AXIAL 60X25MM 12VDC WIRE
Detailed Description Fan Tubeaxial 12VDC Square - 60mm L x 60mm H Ball 28.0 CFM (0.784m³/min) 2 Wire Leads
Manufacturer Standard Lead Time 19 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Orion Fans
Series
OD6025
Packaging
Bulk
Part Status Active
Features Auto Restart
Voltage - Rated 12VDC
Size / Dimension Square - 60mm L x 60mm H
Bearing Type Ball
RPM 5100 RPM
Air Flow 28.0 CFM (0.784m³/min)
Width 25.00mm
Weight 0.141 lb (63.96 g)
Operating Temperature -4 ~ 149°F (-20 ~ 65°C)
Termination 2 Wire Leads
Approval Agency cURus, TUV
Fan Type Tubeaxial
Noise 40.0dB
Static Pressure 0.240 in H2O (59.8 Pa)
Power (Watts) 3.1 W

Documents & Media

RESOURCE TYPE LINK
Datasheets OD6025-12HHB
Datasheets AC,DC Part Number Guide
Datasheets Selector Guide
Datasheets Technical Terms

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
California Prop 65 California Prop 65 Information
ECCN EAR99
HTSUS 8414.59.6590
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant
