OD4020-12LB

Part Number
OD4020-12LB
Manufacturer Orion Fans
Other Part Numbers
1053-1216-ND
1053-1216
OD4020-12LBX
OD402012LB
3937-OD4020-12LB

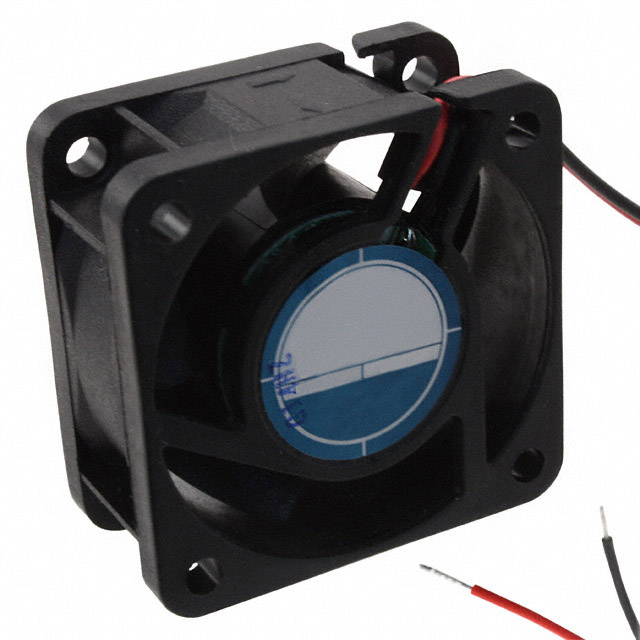

Description FAN AXIAL 40X20MM 12VDC WIRE
Detailed Description Fan Tubeaxial 12VDC Square - 40mm L x 40mm H Ball 6.5 CFM (0.182m³/min) 2 Wire Leads
Manufacturer Standard Lead Time 19 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Orion Fans
Series
OD4020
Packaging
Box
Part Status Active
Features Auto Restart
Voltage - Rated 12VDC
Size / Dimension Square - 40mm L x 40mm H
Bearing Type Ball
RPM 5150 RPM
Air Flow 6.5 CFM (0.182m³/min)
Width 20.00mm
Operating Temperature -4 ~ 149°F (-20 ~ 65°C)
Termination 2 Wire Leads
Approval Agency CE, cURus, TUV
Fan Type Tubeaxial
Noise 24.1dB(A)
Static Pressure 0.140 in H2O (34.9 Pa)
Power (Watts) 980 mW

Documents & Media

RESOURCE TYPE LINK
Datasheets OD4020-12LB
Datasheets AC,DC Part Number Guide
Datasheets Selector Guide
Datasheets Technical Terms

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
California Prop 65 California Prop 65 Information
ECCN EAR99
HTSUS 8414.59.6590
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant
