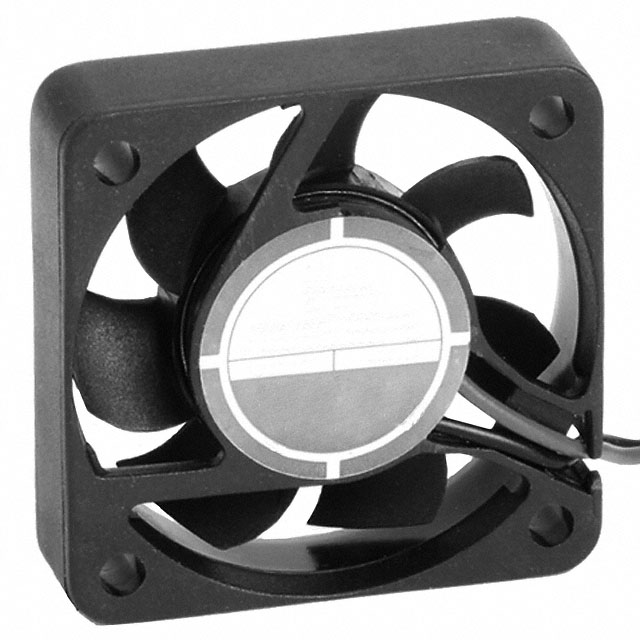

OD4010-24HS01A _ DC Brushless Fans (BLDC)_Fans_Fans, Blowers, Thermal Management

Part Number	OD4010-24HS01A
Manufacturer	Orion Fans
Other Part Numbers	OD4010-24HS01A-ND OD4010-24HS01AX OD401024HS01A
Description	FAN AXIAL 40X10.5MM 24VDC WIRE
Detailed Description	Fan Tubeaxial 24VDC Square - 40mm L x 40mm H Sleeve 9.2 CFM (0.258m³/min) 3 Wire Leads
Manufacturer Standard Lead Time	19 weeks

Category		Fans, Blowers, Thermal Management Fans DC Brushless Fans (BLDC)
Manufacturer		Orion Fans
Series		OD4010
Packaging		Bulk
Part Status		Active
Features		Auto Restart, Speed Sensor (Tach)
Voltage - Rated		24VDC
Size / Dimension		Square - 40mm L x 40mm H
Bearing Type		Sleeve
Current Rating (Amps)		0.060A
RPM		8000 RPM
Air Flow		9.2 CFM (0.258m³/min)
Width		10.50mm
Weight		0.441 lb (200.00 g)
Operating Temperature		-4 ~ 149°F (-20 ~ 65°C)
Voltage Range		21.6 ~ 26.4VDC
Termination		3 Wire Leads
Approval Agency		CE, cURus, TUV, UR
Lifetime @ Temp.		60000 Hrs @ 45°C
Fan Type		Tubeaxial
Noise		33.4dB
Static Pressure		0.200 in H2O (49.8 Pa)
Material - Frame		Polybutylene Terephthalate (PBT)
Material - Blade		Polybutylene Terephthalate (PBT)
Power (Watts)		1.45 W

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8414.59.6590
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
