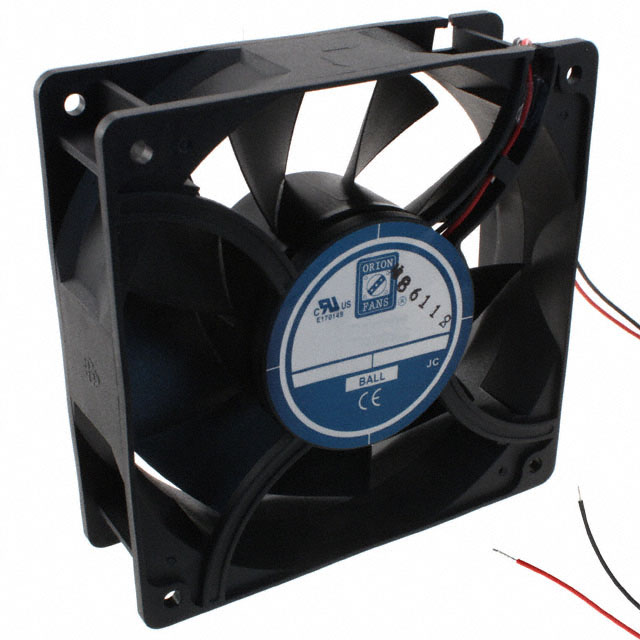

OD1238-12LBXC

Part Number
OD1238-12LBXC
Manufacturer Orion Fans
Other Part Numbers
1053-1152-ND
OD123812LBXC
OD1238PT-12LBXC
1053-1152
OD1238-12LBXCX
Description FAN AXIAL 120X38.5MM 12VDC WIRE
Detailed Description Fan Tubeaxial 12VDC Square - 120mm L x 120mm H Ball 150.0 CFM (4.20m³/min) 2 Wire Leads
Manufacturer Standard Lead Time 19 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Orion Fans
Series
OD1238 XC
Packaging
Box
Part Status Active
Features Auto Restart
Voltage - Rated 12VDC
Size / Dimension Square - 120mm L x 120mm H
Bearing Type Ball
Current Rating (Amps) 0.870A
RPM 3200 RPM
Air Flow 150.0 CFM (4.20m³/min)
Width 38.50mm
Operating Temperature 14 ~ 158°F (-10 ~ 70°C)
Termination 2 Wire Leads
Approval Agency cURus, TUV
Lifetime @ Temp. 65000 Hrs @ 45°C
Fan Type Tubeaxial
Noise 52.0dB
Static Pressure 0.380 in H2O (94.6 Pa)
Material - Frame Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Material - Blade Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Power (Watts) 10 W

Documents & Media

RESOURCE TYPE LINK
Datasheets OD1238-12LBXC
Datasheets AC,DC Part Number Guide
Datasheets Selector Guide
Datasheets Technical Terms

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
California Prop 65 California Prop 65 Information
ECCN EAR99
HTSUS 8414.59.6590
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 78

Can ship immediately.
