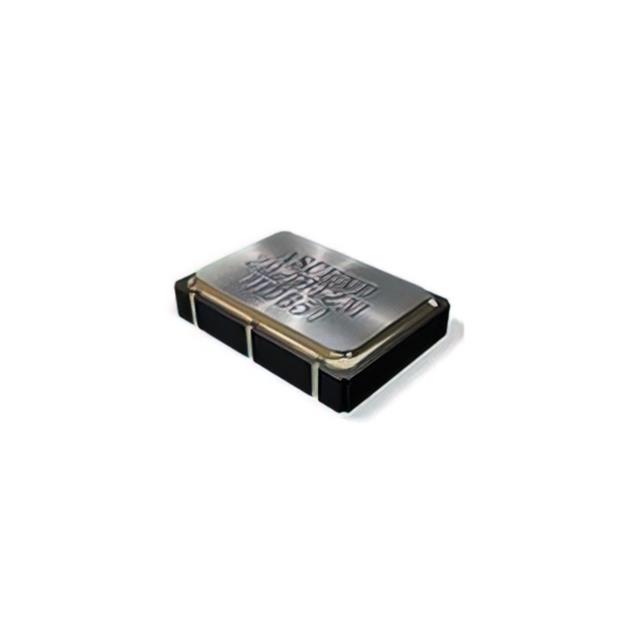

OCC3DC3BT-135.000M-TR

Part Number
OCC3DC3BT-135.000M-TR
Manufacturer Ascend Frequency Devices
Other Part Numbers
4602-OCC3DC3BT-135.000M-TR-ND
4602-OCC3DC3BT-135.000M-TR
Description XTAL OSC XO 135.0000MHZ 6PAD PKG
Detailed Description 135 MHz XO (Standard) LVDS Oscillator 3.3V Enable/Disable 6-SMD, No Lead

Product Attributes

Category
Manufacturer Ascend Frequency Devices
Series
OCC3D
Packaging
Bulk
Part Status Active
Package / Case 6-SMD, No Lead
Size / Dimension 0.283" L x 0.205" W (7.20mm x 5.20mm)
Mounting Type Surface Mount
Output LVDS
Function Enable/Disable
Type XO (Standard)
Operating Temperature -40°C ~ 85°C
Frequency Stability ±25ppm
Voltage - Supply 3.3V
Current - Supply (Max) 50mA
Height - Seated (Max) 0.079" (2.00mm)
Frequency 135 MHz
Base Resonator Crystal

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 6541.60.6000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status RoHS Compliant
