OA172SAPL-22-1TB _ AC Fans_Fans_Fans, Blowers, Thermal Management

Part Number	OA172SAPL-22-1TB
Manufacturer	Orion Fans
Other Part Numbers	1053-1047-ND OA172SAPL221TB 1053-1047 OA172SAPL22-1TB OA172SAPL22-1TBX OA172SAPL-22-1TBX

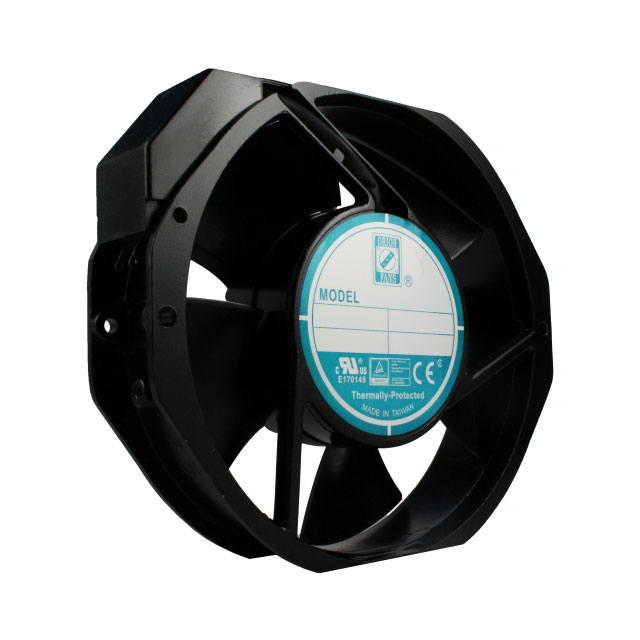

Description	FAN AXIAL 172X38.5MM 230VAC TERM
Detailed Description	Fan Tubeaxial 230VAC Rectangular/Rounded - 172mm L x 150mm H Ball 228.0 CFM (6.38m³/min) 2 Terminals
Manufacturer Standard Lead Time	19 weeks
Datasheet	Datasheet

Category		Fans, Blowers, Thermal Management Fans AC Fans
Manufacturer		Orion Fans
Series		OA172SAPL
Packaging		Box
Part Status		Active
Power (Watts)		28.00W
Features		Capacitor, Thermal Overload Protector (TOP)
Voltage - Rated		230VAC
Size / Dimension		Rectangular/Rounded - 172mm L x 150mm H
Bearing Type		Ball
RPM		3400 RPM
Air Flow		228.0 CFM (6.38m³/min)
Width		38.50mm
Weight		1.6 lbs (725.7 g)
Operating Temperature		-4 ~ 176°F (-20 ~ 80°C)
Voltage Range		160 ~ 260VAC
Termination		2 Terminals
Approval Agency		cURus, TUV
Lifetime @ Temp.		60000 Hrs @ 40°C
Fan Type		Tubeaxial
Noise		58.0dB
Static Pressure		0.870 in H2O (216.7 Pa)
Material - Frame		Aluminum
Material - Blade		Polybutylene Terephthalate (PBT)

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8414.59.6590
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
