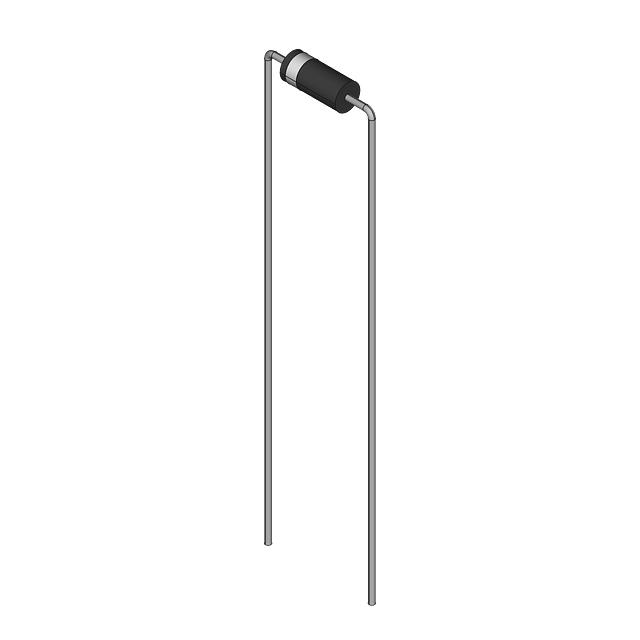

NZX10D,133

Part Number
NZX10D,133
Manufacturer NXP Semiconductors
Other Part Numbers
2156-NZX10D,133-954-ND
2156-NZX10D,133-954
Description NEXPERIA NZX10D - ZENER DIODE, 1
Detailed Description Zener Diode 10 V 500 mW ±2% Through Hole ALF2
Datasheet Datasheet

Product Attributes

Category
Manufacturer NXP Semiconductors
Series
Packaging
Bulk
Part Status Active
Tolerance ±2%
Package / Case DO-204AH, DO-35, Axial
Mounting Type Through Hole
Operating Temperature -55°C ~ 175°C
Voltage - Zener (Nom) (Vz) 10 V
Impedance (Max) (Zzt) 25 Ohms
Supplier Device Package ALF2
Power - Max 500 mW
Voltage - Forward (Vf) (Max) @ If 1.5 V @ 200 mA
Current - Reverse Leakage @ Vr 200 nA @ 7 V

Documents & Media

RESOURCE TYPE LINK
Datasheets NZX10D,133

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
