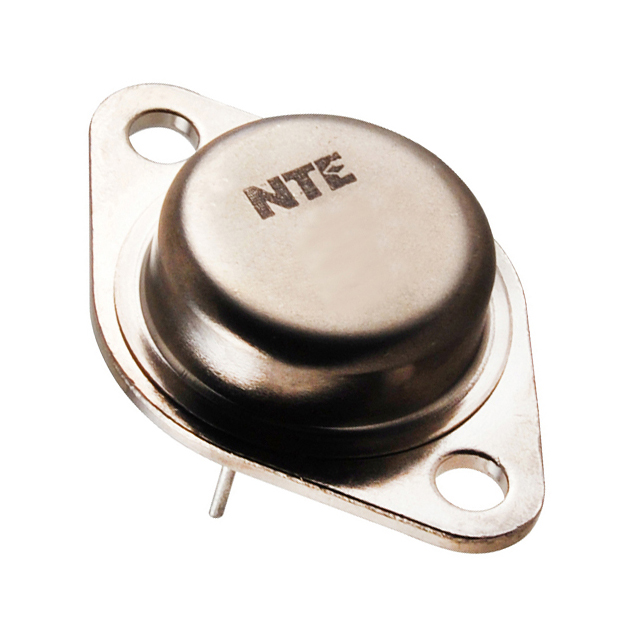

NTE61

NTE61

Part Number	NTE61
Manufacturer	NTE Electronics, Inc.
Other Part Numbers	2368-NTE61-ND 2368-NTE61
Description	TRANS PNP 140V 20A TO3
Detailed Description	Bipolar (BJT) Transistor PNP 140 V 20 A 2MHz 250 W Through Hole TO-3
Datasheet	Datasheet

Product Attributes

Category		Discrete Semiconductor Products Transistors Bipolar (BJT) Single Bipolar Transistors
Manufacturer		NTE Electronics, Inc.
Series
Packaging		Bag
Part Status		Active
Package / Case		TO-204AA, TO-3
Mounting Type		Through Hole
Transistor Type		PNP
Operating Temperature		-65°C ~ 200°C (TJ)
Vce Saturation (Max) @ Ib, Ic		1V @ 500mA, 5A
Current - Collector Cutoff (Max)		250µA
DC Current Gain (hFE) (Min) @ Ic, Vce		25 @ 5A, 2V
Frequency - Transition		2MHz
Supplier Device Package		TO-3
Current - Collector (Ic) (Max)		20 A
Voltage - Collector Emitter Breakdown (Max)		140 V
Power - Max		250 W

Documents & Media

RESOURCE TYPE		LINK
Datasheets		NTE61
Datasheets		RoHS Statement
Datasheets		REACH Statement

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.29.0095
RoHS Status		ROHS3 Compliant
