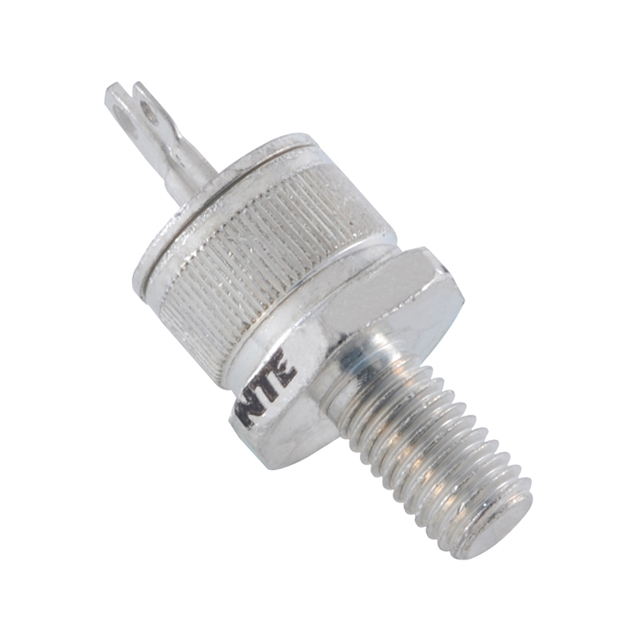

NTE5524

NTE5524

Part Number	NTE5524
Manufacturer	NTE Electronics, Inc.
Other Part Numbers	2368-NTE5524-ND 2368-NTE5524
Description	SCR 200V 25A TO48
Detailed Description	SCR 200 V 25 A Standard Recovery Stud Mount TO-48
Datasheet	Datasheet

Product Attributes

Category		Discrete Semiconductor Products Thyristors SCRs
Manufacturer		NTE Electronics, Inc.
Series
Packaging		Bag
Part Status		Active
Package / Case		TO-208AA, TO-48-3, Stud
Mounting Type		Stud Mount
SCR Type		Standard Recovery
Operating Temperature		-65°C ~ 125°C (TJ)
Current - Gate Trigger (Igt) (Max)		40 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)		150A @ 60Hz
Current - On State (It (AV)) (Max)		16 A
Voltage - Gate Trigger (Vgt) (Max)		3 V
Voltage - On State (Vtm) (Max)		1.7 V
Supplier Device Package		TO-48
Current - On State (It (RMS)) (Max)		25 A
Voltage - Off State		200 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		NTE5524
Datasheets		RoHS Statement
Datasheets		REACH Statement

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.30.0000
RoHS Status		ROHS3 Compliant
