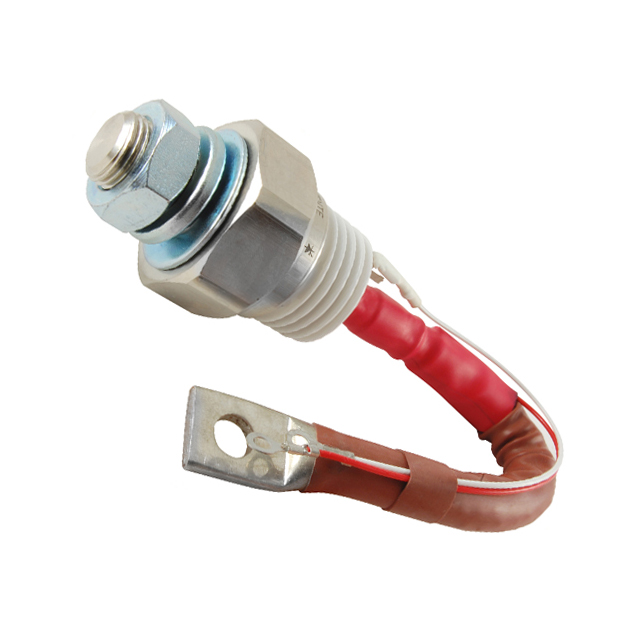

NTE5378

NTE5378

Part Number	NTE5378
Manufacturer	NTE Electronics, Inc.
Other Part Numbers	2368-NTE5378-ND 2368-NTE5378
Description	SCR-1200V 475A HI SPD
Detailed Description	SCR 1.2 kV 520 A Standard Recovery Stud Mount TO-118
Datasheet	Datasheet

Product Attributes

Category		Discrete Semiconductor Products Thyristors SCRs
Manufacturer		NTE Electronics, Inc.
Series
Packaging		Bag
Part Status		Active
Package / Case		TO-209AE, TO-118-4, Stud
Mounting Type		Stud Mount
SCR Type		Standard Recovery
Operating Temperature		-40°C ~ 125°C (TJ)
Current - Hold (Ih) (Max)		600 mA
Current - Gate Trigger (Igt) (Max)		200 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)		9000A, 9420A
Current - On State (It (AV)) (Max)		330 A
Voltage - Gate Trigger (Vgt) (Max)		3 V
Voltage - On State (Vtm) (Max)		1.52 V
Current - Off State (Max)		50 mA
Supplier Device Package		TO-118
Current - On State (It (RMS)) (Max)		520 A
Voltage - Off State		1.2 kV

Documents & Media

RESOURCE TYPE		LINK
Datasheets		NTE5378
Datasheets		RoHS Statement
Datasheets		REACH Statement

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.10.0080
RoHS Status		ROHS3 Compliant
