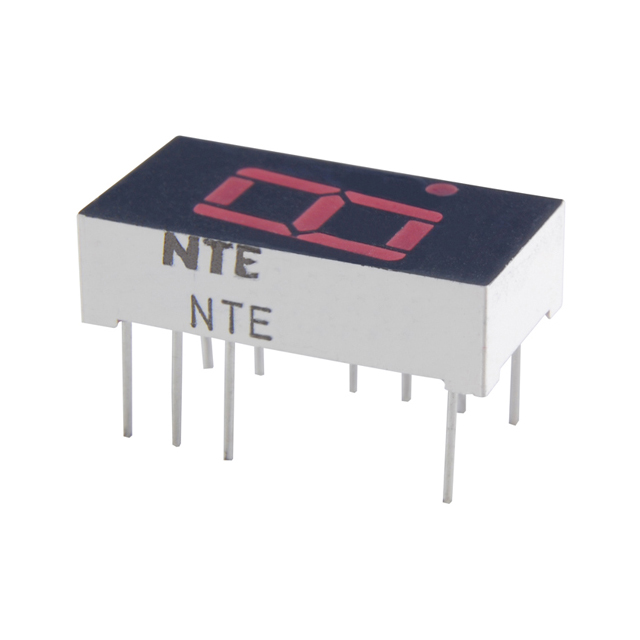

NTE3069

NTE3069

Part Number	NTE3069
Manufacturer	NTE Electronics, Inc.
Other Part Numbers	2368-NTE3069-ND 2368-NTE3069
Description	LED-DISPLAY-RED
Detailed Description	Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Cathode 1.85V 20mA 0.736" H x 0.386" W x 0.201" D (18.70mm x 9.80mm x 5.10mm) 14-DIP (0.284", 7.21mm), 11 Leads
Datasheet	Datasheet

Product Attributes

Category		Optoelectronics LED Character and Numeric
Manufacturer		NTE Electronics, Inc.
Series
Packaging		Bag
Part Status		Active
Package / Case		14-DIP (0.284", 7.21mm), 11 Leads
Color		Red
Display Type		7-Segment
Size / Dimension		0.736" H x 0.386" W x 0.201" D (18.70mm x 9.80mm x 5.10mm)
Number of Characters		1
Millicandela Rating		10.5mcd
Common Pin		Common Cathode
Digit/Alpha Size		0.40" (10.16mm)
Voltage - Forward (Vf) (Typ)		1.85V
Current - Test		20mA
Wavelength - Peak		660nm
Power Dissipation (Max)		100mW

Documents & Media

RESOURCE TYPE		LINK
Datasheets		NTE3069
Datasheets		RoHS Statement
Datasheets		REACH Statement

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.41.0000
RoHS Status		ROHS3 Compliant
