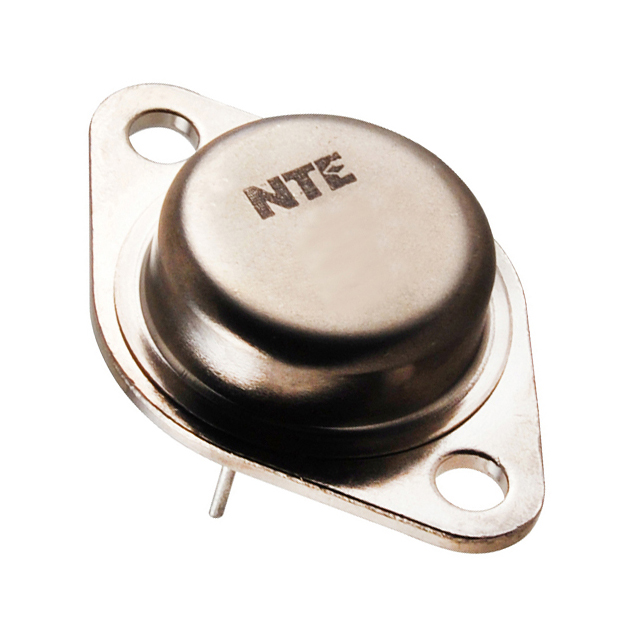

NTE246

Part Number
NTE246
Manufacturer NTE Electronics, Inc.
Other Part Numbers
2368-NTE246-ND
2368-NTE246
Description TRANS PNP DARL 80V 10A TO3
Detailed Description Bipolar (BJT) Transistor PNP - Darlington 80 V 10 A 150 W Through Hole TO-3
Datasheet Datasheet

Product Attributes

Category
Manufacturer NTE Electronics, Inc.
Series
Packaging
Bag
Part Status Active
Package / Case TO-204AA, TO-3
Mounting Type Through Hole
Transistor Type PNP - Darlington
Operating Temperature -55°C ~ 200°C (TJ)
Vce Saturation (Max) @ Ib, Ic 4V @ 50mA, 10A
Current - Collector Cutoff (Max) 1mA
DC Current Gain (hFE) (Min) @ Ic, Vce 1000 @ 5A, 3V
Supplier Device Package TO-3
Current - Collector (Ic) (Max) 10 A
Voltage - Collector Emitter Breakdown (Max) 80 V
Power - Max 150 W

Documents & Media

RESOURCE TYPE LINK
Datasheets NTE246
Datasheets RoHS Statement
Datasheets REACH Statement

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.29.0095
RoHS Status ROHS3 Compliant

Available To Order
