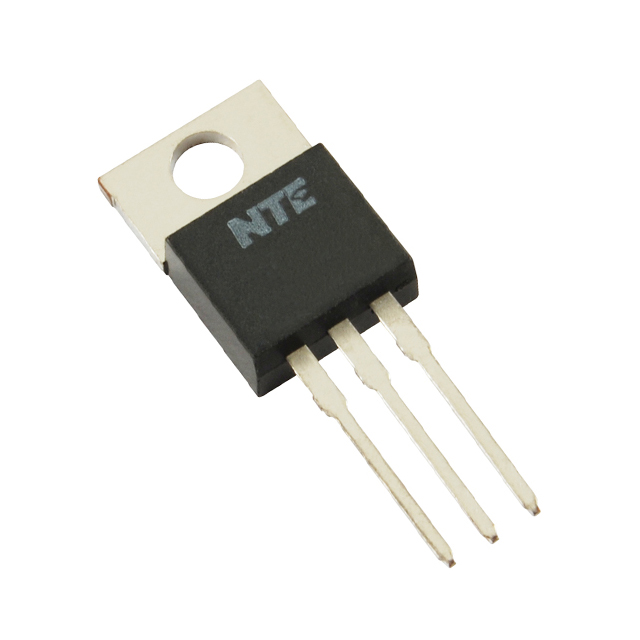

NTE2313

Part Number
NTE2313
Manufacturer NTE Electronics, Inc.
Other Part Numbers
2368-NTE2313-ND
2368-NTE2313
Description TRANS NPN 450V 2A TO220
Detailed Description Bipolar (BJT) Transistor NPN 450 V 2 A 4MHz 50 W Through Hole TO-220
Datasheet Datasheet

Product Attributes

Category
Manufacturer NTE Electronics, Inc.
Series
Packaging
Bag
Part Status Active
Package / Case TO-220-3
Mounting Type Through Hole
Transistor Type NPN
Operating Temperature -65°C ~ 150°C (TJ)
Vce Saturation (Max) @ Ib, Ic 1V @ 200mA, 1A
Current - Collector Cutoff (Max) 200µA
DC Current Gain (hFE) (Min) @ Ic, Vce 30 @ 100mA, 5V
Frequency - Transition 4MHz
Supplier Device Package TO-220
Current - Collector (Ic) (Max) 2 A
Voltage - Collector Emitter Breakdown (Max) 450 V
Power - Max 50 W

Documents & Media

RESOURCE TYPE LINK
Datasheets NTE2313
Datasheets REACH Statement
Datasheets RoHS Statement

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.29.0095
RoHS Status ROHS3 Compliant
