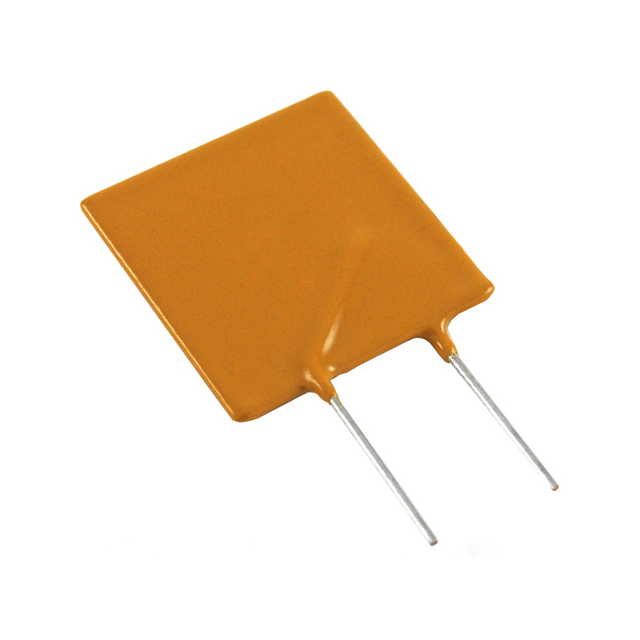

NTE16015-ECG

NTE16015-ECG

Part Number	NTE16015-ECG
Manufacturer	NTE Electronics, Inc.
Other Part Numbers	2368-NTE16015-ECG-ND 2368-NTE16015-ECG
Description	PTC RESET FUSE 30V 2.5A RADIAL
Detailed Description	Polymeric PTC Resettable Fuse 30V 2.5 A Ih Through Hole Radial, Disc
Datasheet	Datasheet

Product Attributes

Category		Circuit Protection PTC Resettable Fuses
Manufacturer		NTE Electronics, Inc.
Series
Packaging		Bag
Part Status		Active
Package / Case		Radial, Disc
Size / Dimension		0.470" L x 0.118" W (12.00mm x 3.00mm)
Mounting Type		Through Hole
Type		Polymeric
Operating Temperature		-40°C ~ 85°C
Lead Spacing		0.201" (5.10mm)
Current - Hold (Ih) (Max)		2.5 A
Current - Trip (It)		5 A
Voltage - Max		30V
Height - Seated (Max)		0.720" (18.30mm)
Current - Max		40 A
Time to Trip		8.7 s
Resistance - Initial (Ri) (Min)		25 mOhms
Resistance - Post Trip (R1) (Max)		110 mOhms

Documents & Media

RESOURCE TYPE		LINK
Datasheets		NTE16015-ECG
Datasheets		REACH Statement
Datasheets		RoHS Statement

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.10.0040
RoHS Status		ROHS3 Compliant
