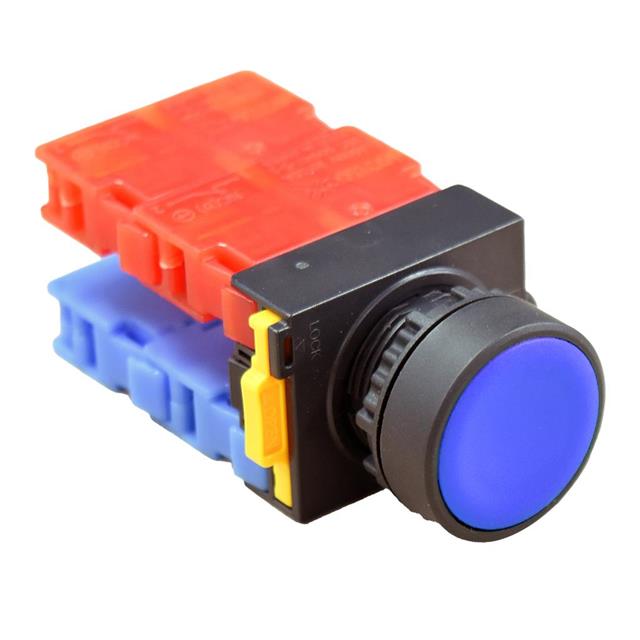

NS22-PM-B2A02B

NS22-PM-B2A02B

Part Number	NS22-PM-B2A02B
Manufacturer	KOINO
Other Part Numbers	5055-NS22-PM-B2A02B-ND 5055-NS22-PM-B2A02B
Description	22mm PUSH BUTTON
Detailed Description	Pushbutton Switch 4PST-2NO/2NC Standard Panel Mount, Front
Datasheet	Datasheet

Product Attributes

Category		Switches Pushbutton Switches
Manufacturer		KOINO
Series		NS22
Packaging		Bulk
Part Status		Active
Current Rating (Amps)		3A (AC), 270mA (DC)
Mounting Type		Panel Mount, Front
Circuit		4PST-2NO/2NC
Type		Standard
Switch Function		On-Mom, Off-Mom
Operating Temperature		-25°C ~ 70°C
Termination Style		Screw Terminal
Actuator Type		Round, Button, Flush
Ingress Protection		IP66 - Dust Tight, Water Resistant
Panel Cutout Dimensions		Circular - 22.30mm Dia
Color - Actuator/Cap		Blue
Voltage Rating - AC		250 V
Voltage Rating - DC		250 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		NS22-PM-B2A02B

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.50.2000
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		Vendor Undefined
RoHS Status		RoHS non-compliant
