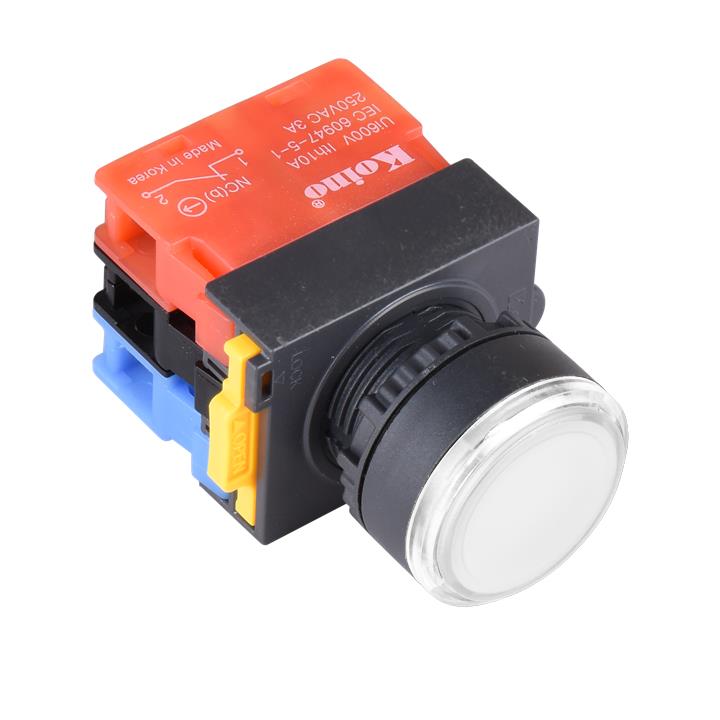

NS22-BM-L3CW1A1B _ Pushbutton Switches_Switches

Part Number	NS22-BM-L3CW1A1B
Manufacturer	KOINO
Other Part Numbers	5055-NS22-BM-L3CW1A1B-ND 5055-NS22-BM-L3CW1A1B
Description	22mm PUSH BUTTON
Detailed Description	Pushbutton Switch DPST-NO/NC Standard, Illuminated Panel Mount, Front
Datasheet	Datasheet

Category		Switches Pushbutton Switches
Manufacturer		KOINO
Series		NS22
Packaging		Bulk
Part Status		Active
Current Rating (Amps)		3A (AC), 270mA (DC)
Mounting Type		Panel Mount, Front
Circuit		DPST-NO/NC
Type		Standard, Illuminated
Switch Function		On-Mom, Off-Mom
Operating Temperature		-25°C ~ 70°C
Termination Style		Screw Terminal
Illumination Type, Color		LED, White
Illumination Voltage (Nominal)		24 VDC
Actuator Type		Round, Button, Flush
Ingress Protection		IP66 - Dust Tight, Water Resistant
Panel Cutout Dimensions		Circular - 22.30mm Dia
Color - Actuator/Cap		White
Voltage Rating - AC		250 V
Voltage Rating - DC		250 V

RESOURCE TYPE		LINK
Datasheets		NS22-BM-L3CW1A1B

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.50.2000
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		Vendor Undefined
RoHS Status		RoHS non-compliant
