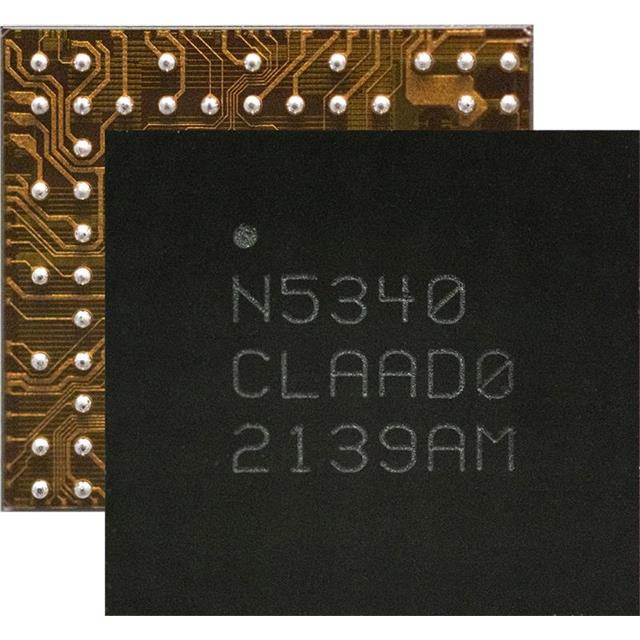

NRF5340-CLAA-R7

Part Number
NRF5340-CLAA-R7
Manufacturer Nordic Semiconductor
Other Part Numbers
4823-NRF5340-CLAA-R7TR-ND
4823-NRF5340-CLAA-R7CT-ND
4823-NRF5340-CLAA-R7DKR-ND
1490-NRF5340-CLAA-R7CT-ND
4823-NRF5340-CLAA-R7CT
1490-NRF5340-CLAA-R7TR
1490-NRF5340-CLAA-R7DKR
4823-NRF5340-CLAA-R7DKR
4823-NRF5340-CLAA-R7TR
1490-NRF5340-CLAA-R7CT
1490-NRF5340-CLAA-R7TR-ND
1490-NRF5340-CLAA-R7DKR-ND
Description DUAL-CORE BLUETOOTH 5.2 SOC
Detailed Description IC RF TxRx + MCU 802.15.4, Bluetooth Bluetooth v5.2, Thread, Zigbee® 2.4GHz 95-XFBGA, WLCSP
Manufacturer Standard Lead Time 16 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Nordic Semiconductor
Series
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Active
Package / Case 95-XFBGA, WLCSP
Sensitivity -97.5dBm
Mounting Type Surface Mount
Frequency 2.4GHz
Memory Size 1MB Flash, 256kB RAM
Type TxRx + MCU
Operating Temperature -40°C ~ 105°C
Voltage - Supply 1.7V ~ 5.5V
Power - Output 3dBm
Protocol Bluetooth v5.2, Thread, Zigbee®
Current - Receiving 2.6mA ~ 7mA
Data Rate (Max) 2Mbps
Current - Transmitting 3.2mA
Supplier Device Package 95-WLCSP (4.39x3.85)
GPIO 48
RF Family/Standard 802.15.4, Bluetooth
Serial Interfaces ADC, I2S, PWM, SPI, UART, USB
DigiKey Programmable Not Verified

Documents & Media

RESOURCE TYPE LINK
Datasheets NRF5340-CLAA-R7

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN 5A992C
HTSUS 8517.62.0090
Moisture Sensitivity Level (MSL) 2 (1 Year)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 3163

Can ship immediately.
PACKAGING QUANTITY UNIT PRICE EXT PRICE
{{ p.name }} {{ numberFormat(p.buyQty) }} {{ priceFormat(p.unitPrice) }} {{ priceFormat(p.totalPrice) }}
Total Amount: {{ priceFormat(quotes.total) }} (including {{ priceFormat(quotes.fee) }} fee)

{{ package.name }}

QUANTITY UNIT PRICE EXT PRICE
{{ numberFormat(price.break_quantity) }} {{ priceFormat(price.unit_price) }} {{ priceFormat(price.break_quantity * price.unit_price) }}
Detailed pricing is currently unavailable.
Detailed packaging information is temporarily unavailable.
