NRF51822-QFAB-R _ RF Transceiver ICs_RF and Wireless

Part Number	NRF51822-QFAB-R
Manufacturer	Nordic Semiconductor
Other Part Numbers	NRF51822-QFAB-R-ND
Description	IC RF TXRX BLUETOOTH 48VFQFN
Detailed Description	IC RF TxRx Only Bluetooth, General ISM > 1GHz Bluetooth v4.0 2.4GHz 48-VFQFN Exposed Pad

Category		RF and Wireless RF Transceiver ICs
Manufacturer		Nordic Semiconductor
Series
Packaging		Tape & Reel (TR)
Part Status		Not For New Designs

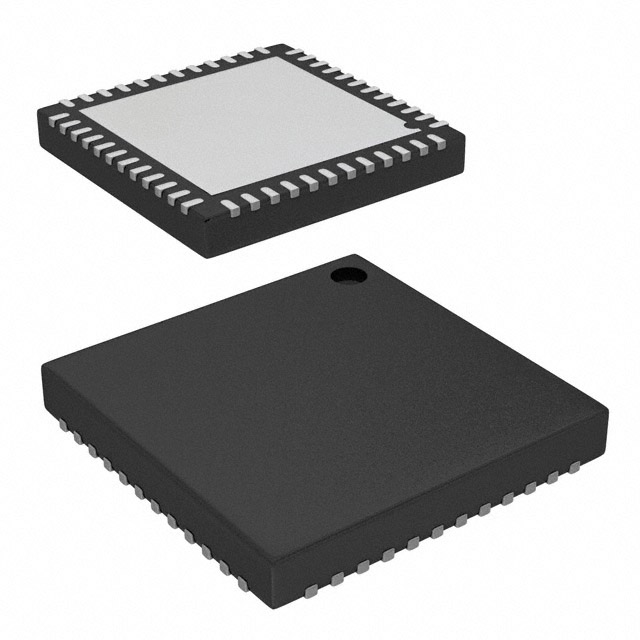

Package / Case		48-VFQFN Exposed Pad
Sensitivity		-96dBm
Mounting Type		Surface Mount
Frequency		2.4GHz
Memory Size		128kB Flash, 16kB RAM
Type		TxRx Only
Operating Temperature		-25°C ~ 75°C
Voltage - Supply		1.8V ~ 3.6V
Power - Output		4dBm
Protocol		Bluetooth v4.0
Current - Receiving		9.7mA ~ 13.4mA
Data Rate (Max)		2Mbps
Current - Transmitting		4.7mA ~ 16mA
Supplier Device Package		48-QFN (6x6)
GPIO		32
Modulation		GFSK
RF Family/Standard		Bluetooth, General ISM > 1GHz
Serial Interfaces		I2C, SPI, UART
DigiKey Programmable		Not Verified

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		5A992C
HTSUS		8542.31.0001
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Not recommended for new design, minimums may apply.
