NRF24LU1P-F32Q32-R7 _ RF Transceiver ICs_RF and Wireless

Part Number	NRF24LU1P-F32Q32-R7
Manufacturer	Nordic Semiconductor
Other Part Numbers	NRF24LU1P-F32Q32-R7-ND
Description	IC RF TXRX+MCU ISM>1GHZ 32VFQFN
Detailed Description	IC RF TxRx + MCU General ISM > 1GHz 2.4GHz 32-VFQFN Exposed Pad
Manufacturer Standard Lead Time	16 weeks

Category		RF and Wireless RF Transceiver ICs
Manufacturer		Nordic Semiconductor
Series
Packaging		Tape & Reel (TR)
Part Status		Active

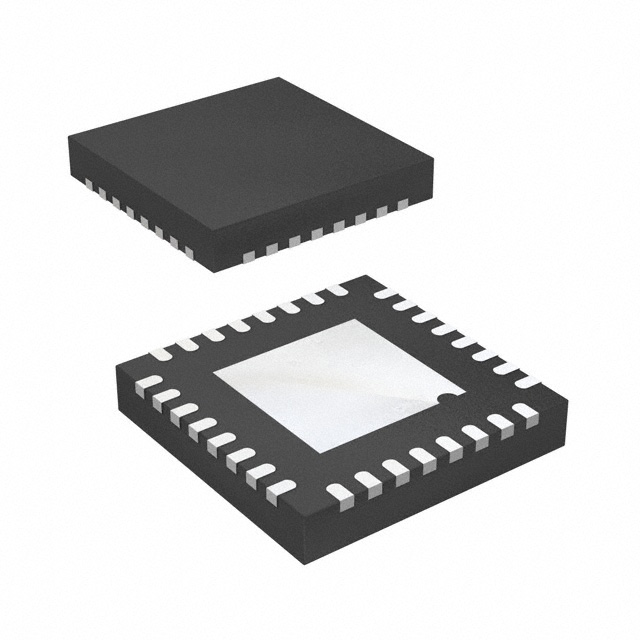

Package / Case		32-VFQFN Exposed Pad
Sensitivity		-94dBm
Mounting Type		Surface Mount
Frequency		2.4GHz
Memory Size		32kB Flash, 2kB SRAM
Type		TxRx + MCU
Operating Temperature		-40°C ~ 85°C
Voltage - Supply		4V ~ 5.25V
Power - Output		0dBm
Current - Receiving		12.9mA ~ 13.3mA
Data Rate (Max)		2Mbps
Current - Transmitting		11.1mA
Supplier Device Package		32-QFN (5x5)
GPIO		6
Modulation		GFSK
RF Family/Standard		General ISM > 1GHz
Serial Interfaces		SPI, UART, USB
DigiKey Programmable		Not Verified

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
