NR301E _ Voltage Regulators - Linear, Low Drop Out (LDO) Regulators_Power Management (PMIC)_Integrated Circuits (ICs)

Part Number	NR301E
Manufacturer	Sanken Electric Co., Ltd.
Other Part Numbers	NR301ETR-ND NR301ECT-ND NR301EDKR-ND NR301E DK NR301EDKR NR301ECT NR301ETR
Description	IC REG LINEAR POS ADJ 1A 8SOIC
Detailed Description	Linear Voltage Regulator IC Positive Adjustable 1 Output 1A 8-SOIC-EP

Category		Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Manufacturer		Sanken Electric Co., Ltd.
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active

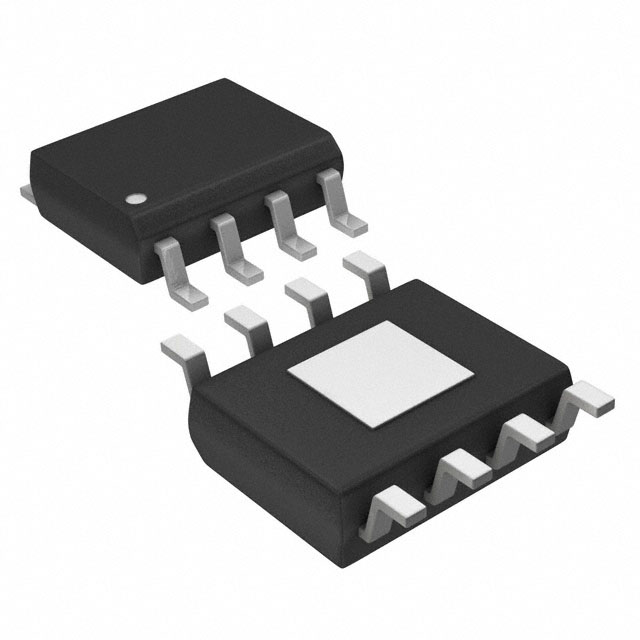

Package / Case		8-SOIC (0.154", 3.90mm Width) Exposed Pad
Output Type		Adjustable
Mounting Type		Surface Mount
Current - Output		1A
Operating Temperature		-30°C ~ 85°C
Output Configuration		Positive
Current - Quiescent (Iq)		1.6 mA
Voltage - Input (Max)		27V
Number of Regulators		1
Supplier Device Package		8-SOIC-EP
Voltage - Output (Max)		16V
Voltage - Output (Min/Fixed)		1.1V
Control Features		Enable
PSRR		55dB (120Hz)
Voltage Dropout (Max)		0.8V @ 1A
Protection Features		Over Current, Over Temperature

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS Compliant

Can ship immediately.
