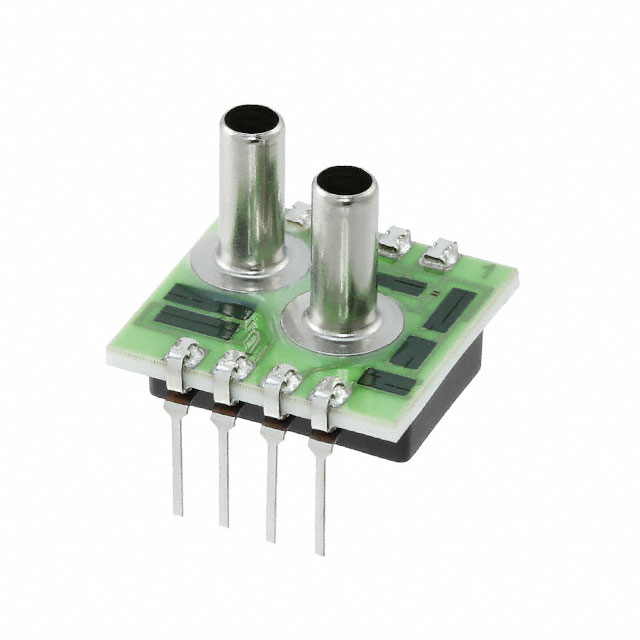

NPP-301B-100A

NPP-301B-100A

Part Number	NPP-301B-100A
Manufacturer	Amphenol NovaSensor
Other Part Numbers	235-1679-5-ND NPP-301B-100A-ND 235-1679-5
Description	SENSOR 15PSIA 0.08" .06V
Detailed Description	Pressure Sensor 15PSI (103.42kPa) Absolute Male - 0.08" (2.04mm) Tube, Dual 0 mV ~ 60 mV (3V) 8-SOIC (0.154", 3.90mm Width)
Datasheet	Datasheet

Product Attributes

Category		Sensors, Transducers Pressure Sensors, Transducers
Manufacturer		Amphenol NovaSensor
Series		NPP-301
Packaging		Tube
Part Status		Active
Package / Case		8-SOIC (0.154", 3.90mm Width)
Output Type		Wheatstone Bridge
Mounting Type		Surface Mount
Output		0 mV ~ 60 mV (3V)
Operating Pressure		15PSI (103.42kPa)
Pressure Type		Absolute
Accuracy		±0.2%
Operating Temperature		-40°C ~ 125°C
Termination Style		Gull Wing
Voltage - Supply		3V ~ 10V
Port Size		Male - 0.08" (2.04mm) Tube, Dual
Applications		Board Mount
Port Style		Barbless
Maximum Pressure		45PSI (310.26kPa)

Documents & Media

RESOURCE TYPE		LINK
Datasheets		NPP-301B-100A

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		9026.20.4000
Moisture Sensitivity Level (MSL)		6 (Time on Label)
RoHS Status		RoHS Compliant

In Stock: 574

Can ship immediately.
